Electro-Magnetic Locks & Accessories
Felix electromagnetic locks delivers unyielding, architectural-grade access control through precision engineering. Our premium electromagnetic and shear locks blend invisible aesthetics with massive holding power to protect high-traffic commercial environments. Invisible Architectural Integration: Our premium concealed shear locks embed completely inside the door and frame, preserving clean design lines without sacrificing holding force.Intelligent Dual-Status Monitoring: Avoid system vulnerabilities with built-in, 5-wire door contacts and lock status sensors providing real-time feedback to your access control panel.Weatherproof Perimeter Defense: Engineered with fully sealed, IP-rated enclosures to withstand harsh outdoor elements on gates and exterior perimeters.Fail-Safe Instant Release: Advanced anti-residual magnetism technology ensures immediate, zero-stick door release the moment power is cut for life-safety compliance.

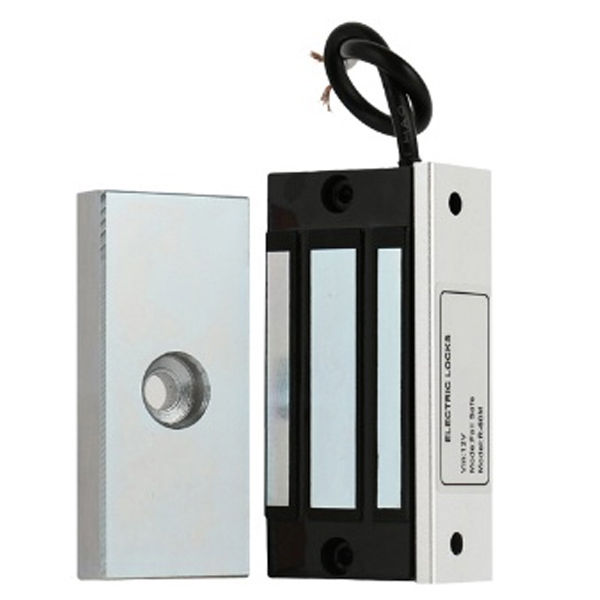

FM-60
Operates on an efficient 12V DC input Current
Miniature Architectural Integration: Designed for seamless, hidden installation inside small medicine cabinets, cash drawers, sliding glass showcases, or server racks.
Fail-Safe Instant Release: Incorporates Felix’s signature anti-residual magnetism kick-pin technology

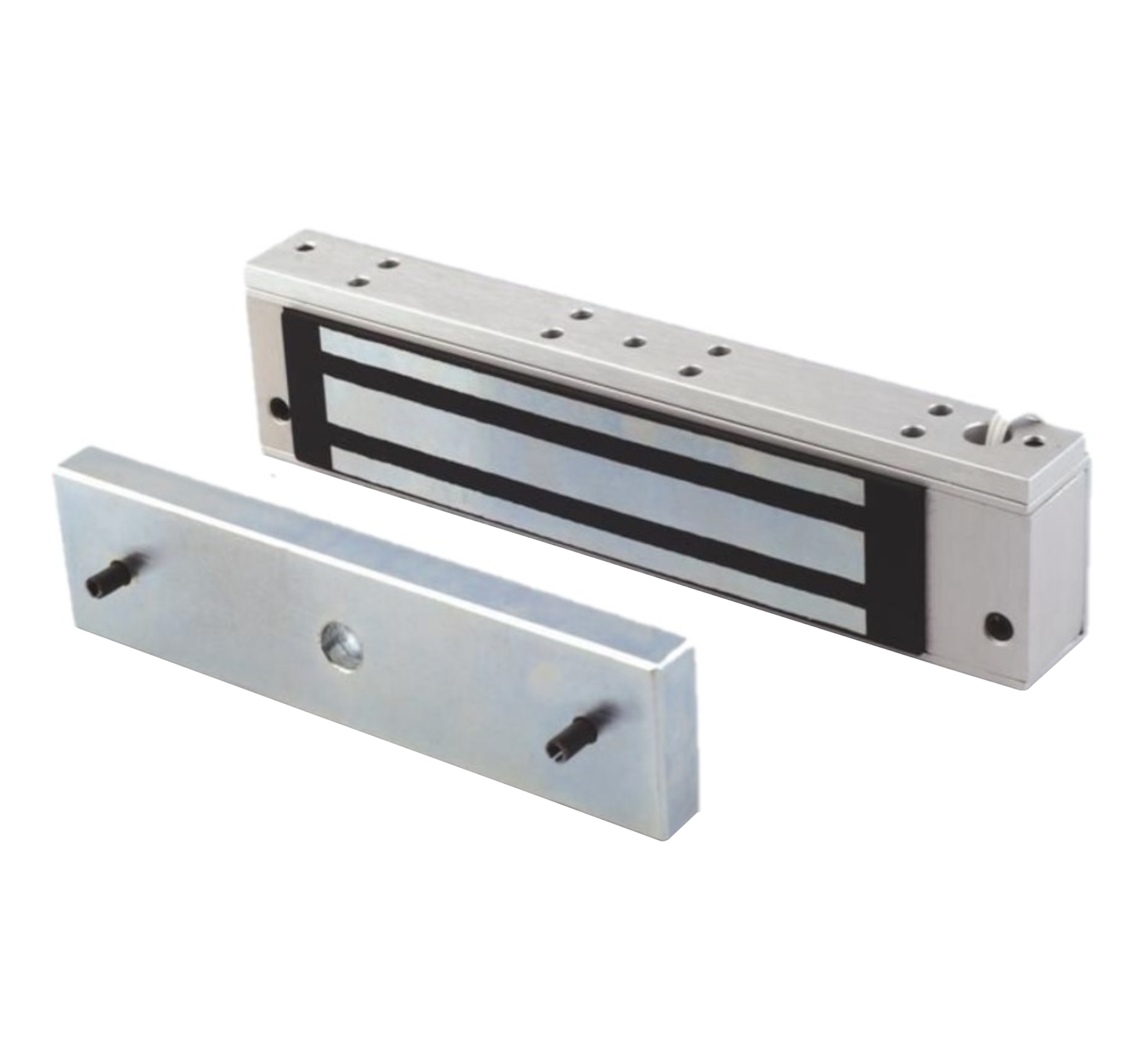

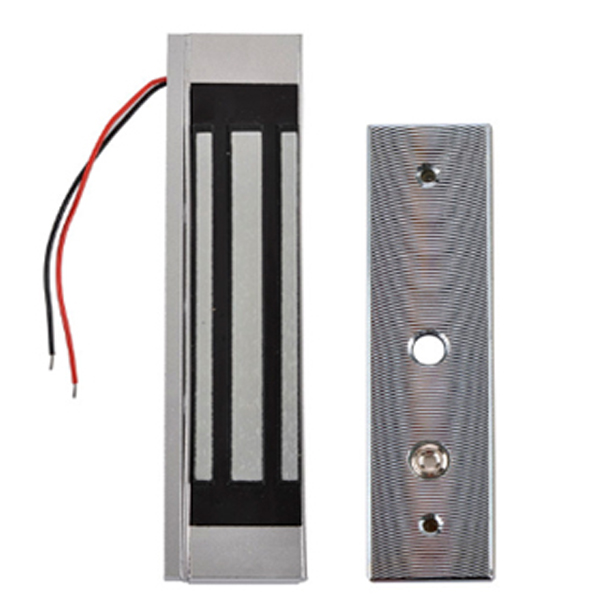

FM-180
Operating Voltage: 12VDC
Features a 350 lbs (180 kg) rated holding force, delivering solid physical restriction on standard-sized frames without over-stressing the door structure.
Constructed from a high-strength aluminum alloy casing treated with a specialized hard-anodized finish to resist structural corrosion over extended deployment cycles.

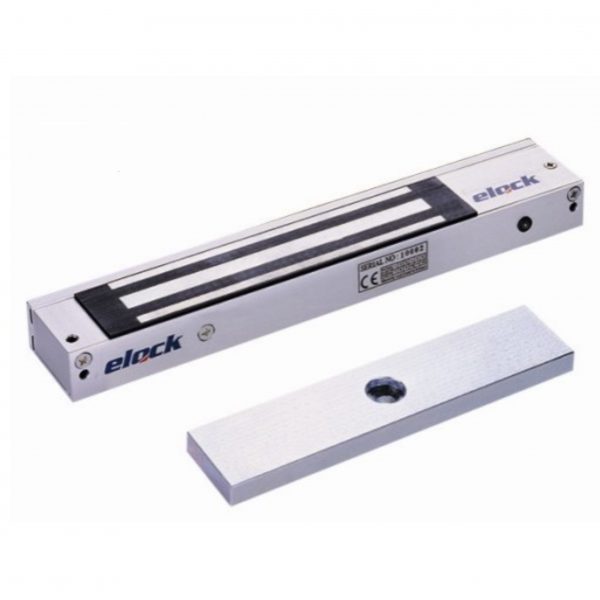

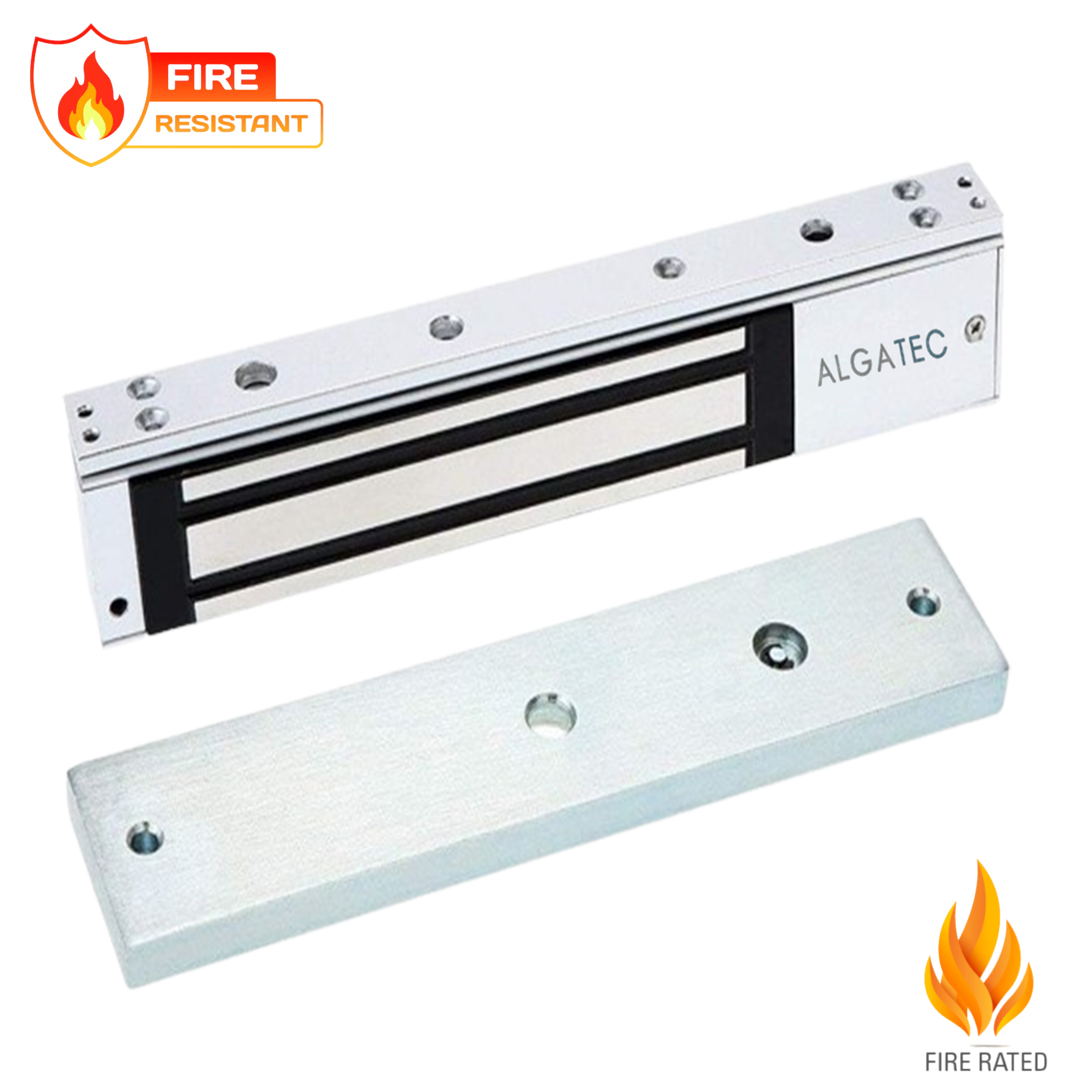

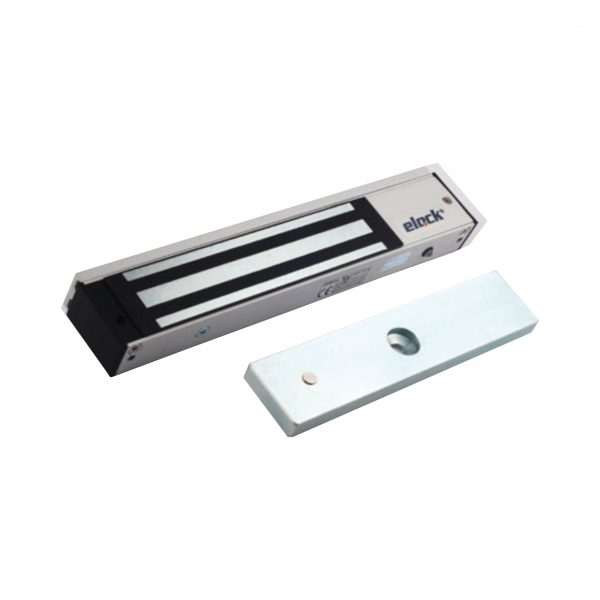

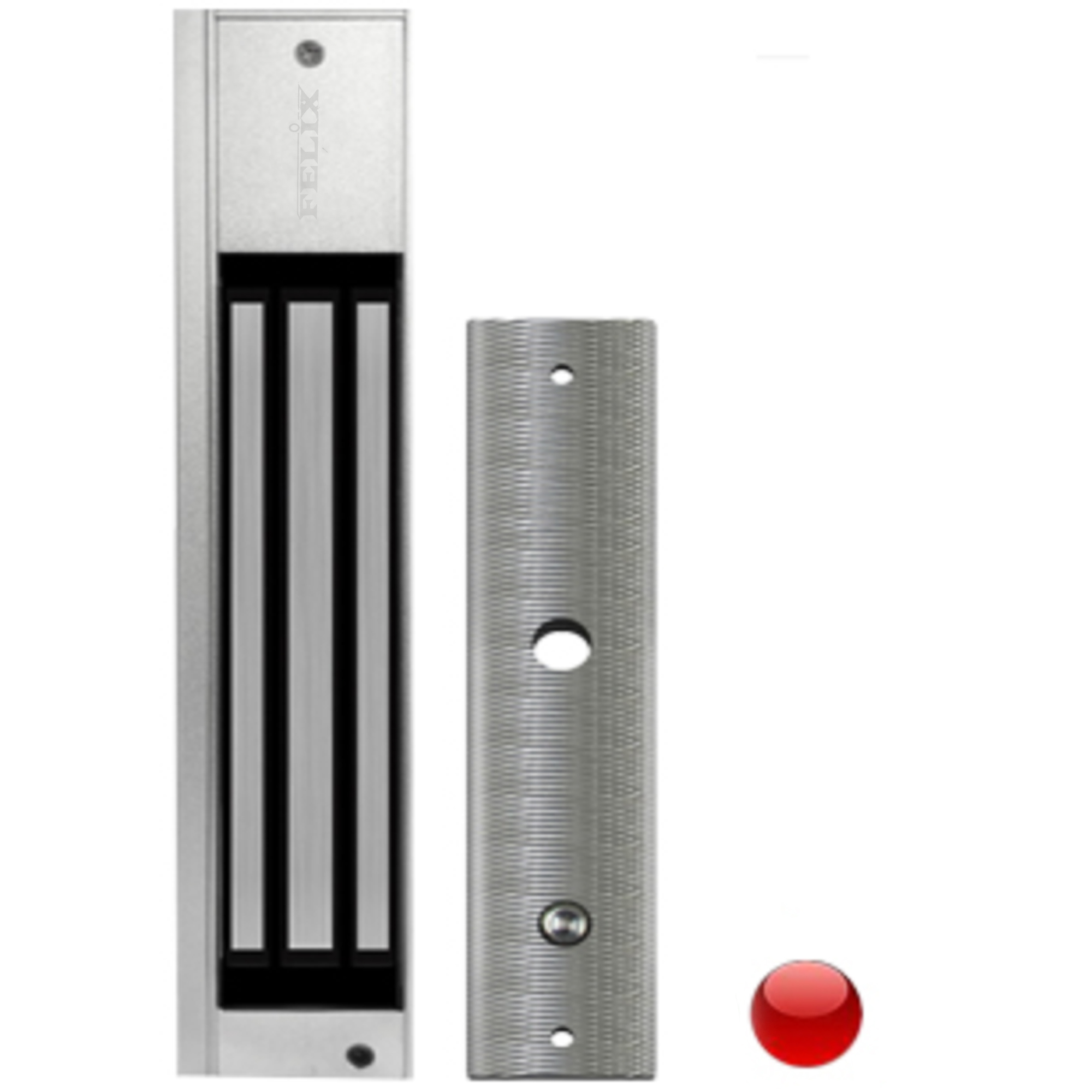

FM-280
Operating Voltage: 12VDC
This is a standard commercial-grade solution providing 600 lbs (280 kg) of linear holding force coupled with a high-visibility status RED LED.
Fail-Safe Emergency Compliance: Power-to-lock architecture ensures that if power is severed by a fire panel trigger, building power failure, the door releases without friction.

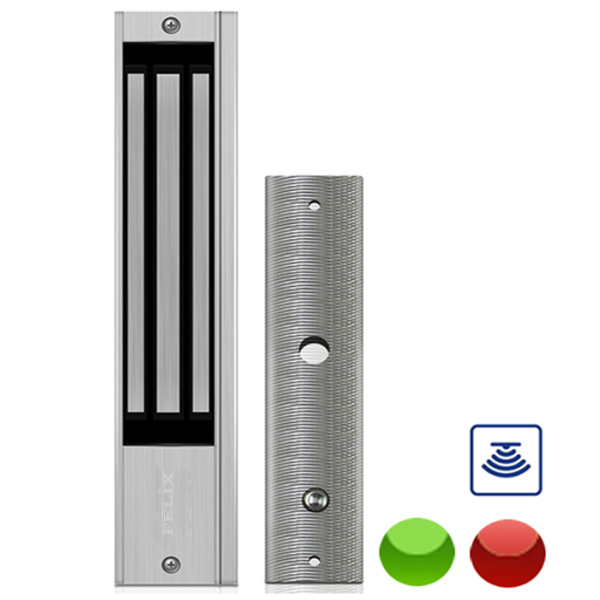

FM-280S
This is an advanced model within the 600 lbs (280 kg) series, engineered with an integrated Bond Sensor (Lock Status) and a high-visibility status Red/Green LED
Power-to-lock architecture ensures that if power is severed by a fire panel trigger, building power failure, or access control command, the door releases without friction.

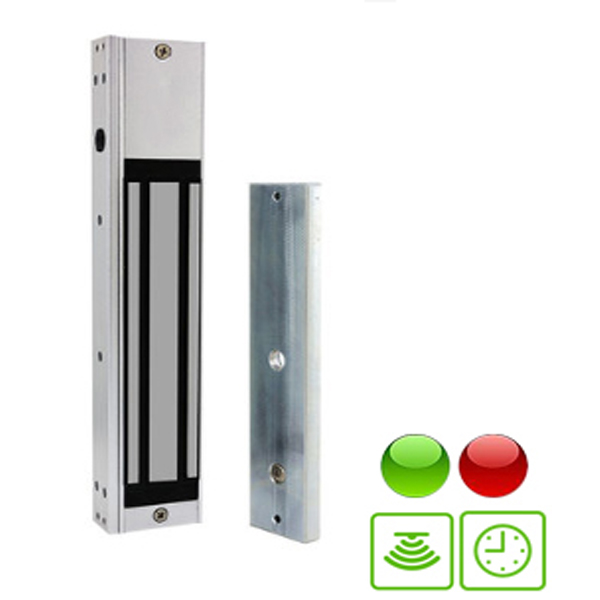

FM-280ST
Operating Voltage: 12VDC
This Lock delivers 600 lbs (280 kg) of holding force combined with an onboard adjustable timer delay, a bond / door status sensor, and a high-visibility Red / Green LED indicator
Electronic Magnetic Bond Sensor: Uses a 5-wire configuration to provide NO/NC/COM dry contact signal outputs.

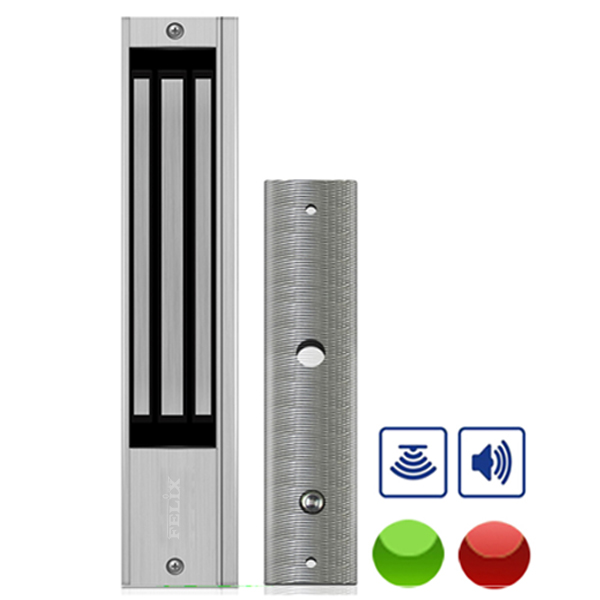

FM-280LZ
Operating Voltage: 12VDC
It delivers 600 lbs (280 kg) of holding force combined with an onboard integrated audible buzzer, a bond/door status sensor, and a high-visibility Red/Green LED indicator.
Electronic Magnetic Bond Sensor: Uses a 5-wire configuration to provide NO/NC/COM dry contact signal outputs.

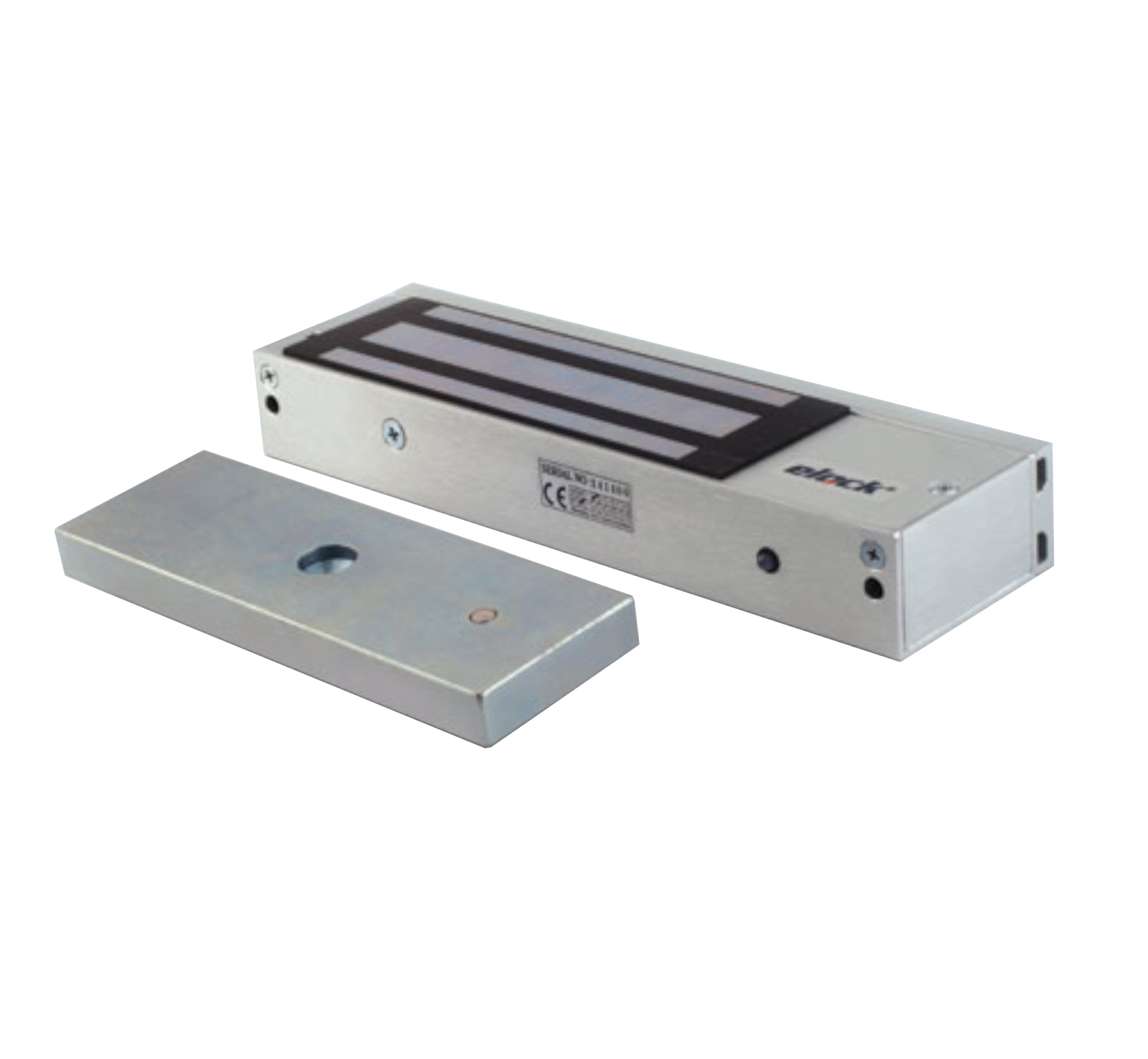

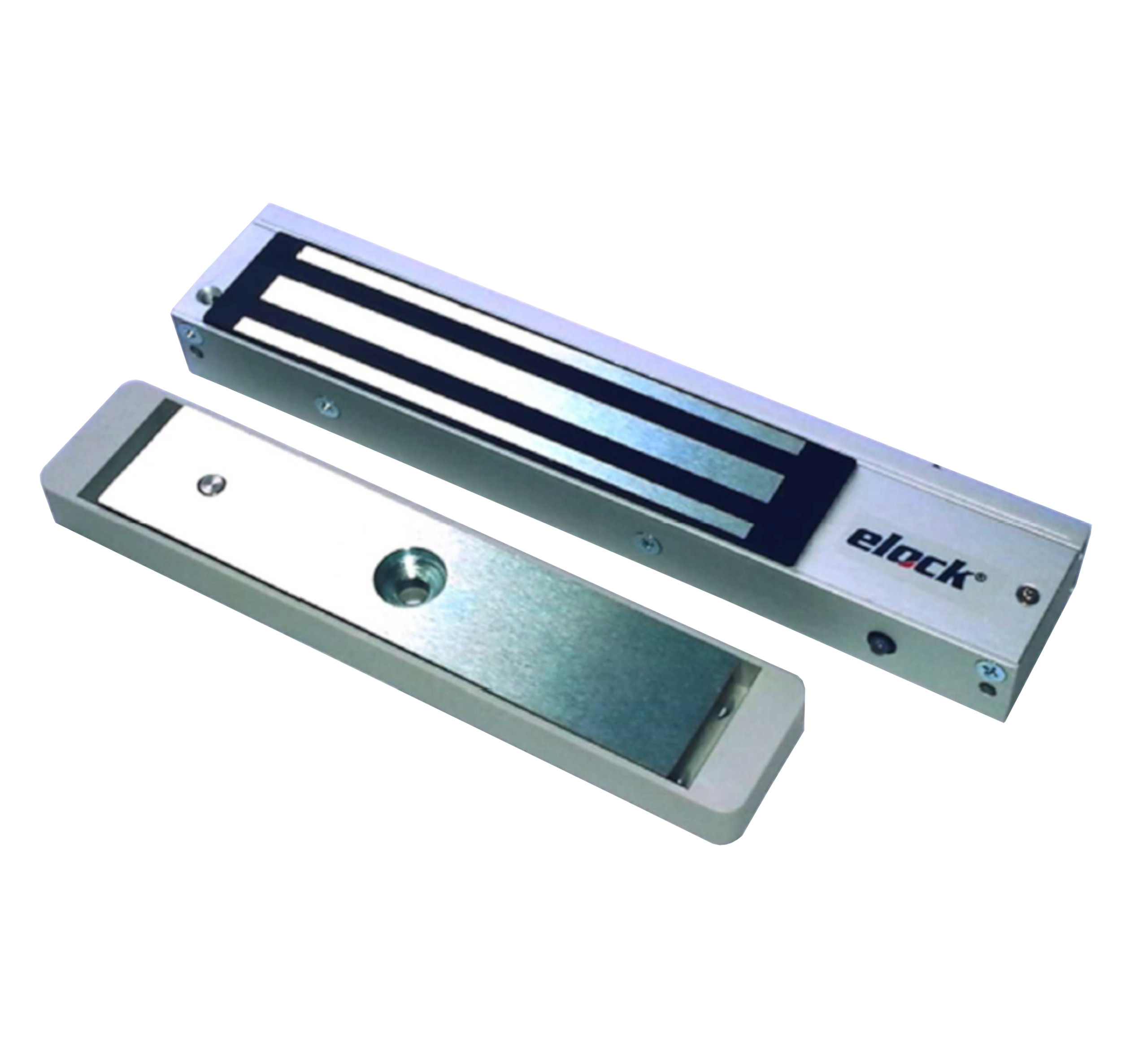

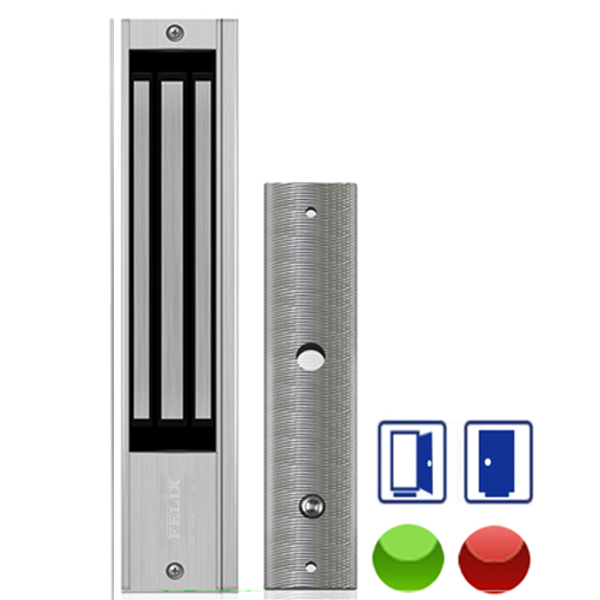

FM-280LD
Operating Voltage: 12VDC
This lock delivers 600lbs (280kg) Dual-Layer Monitoring Architecture with Built-in internal magnetic Door Contact that detects the actual proximity of the armature plate.
Dual Status Bond Sensor: Uses a 5-wire system to provide NO/NC/COM dry contact signal outputs.

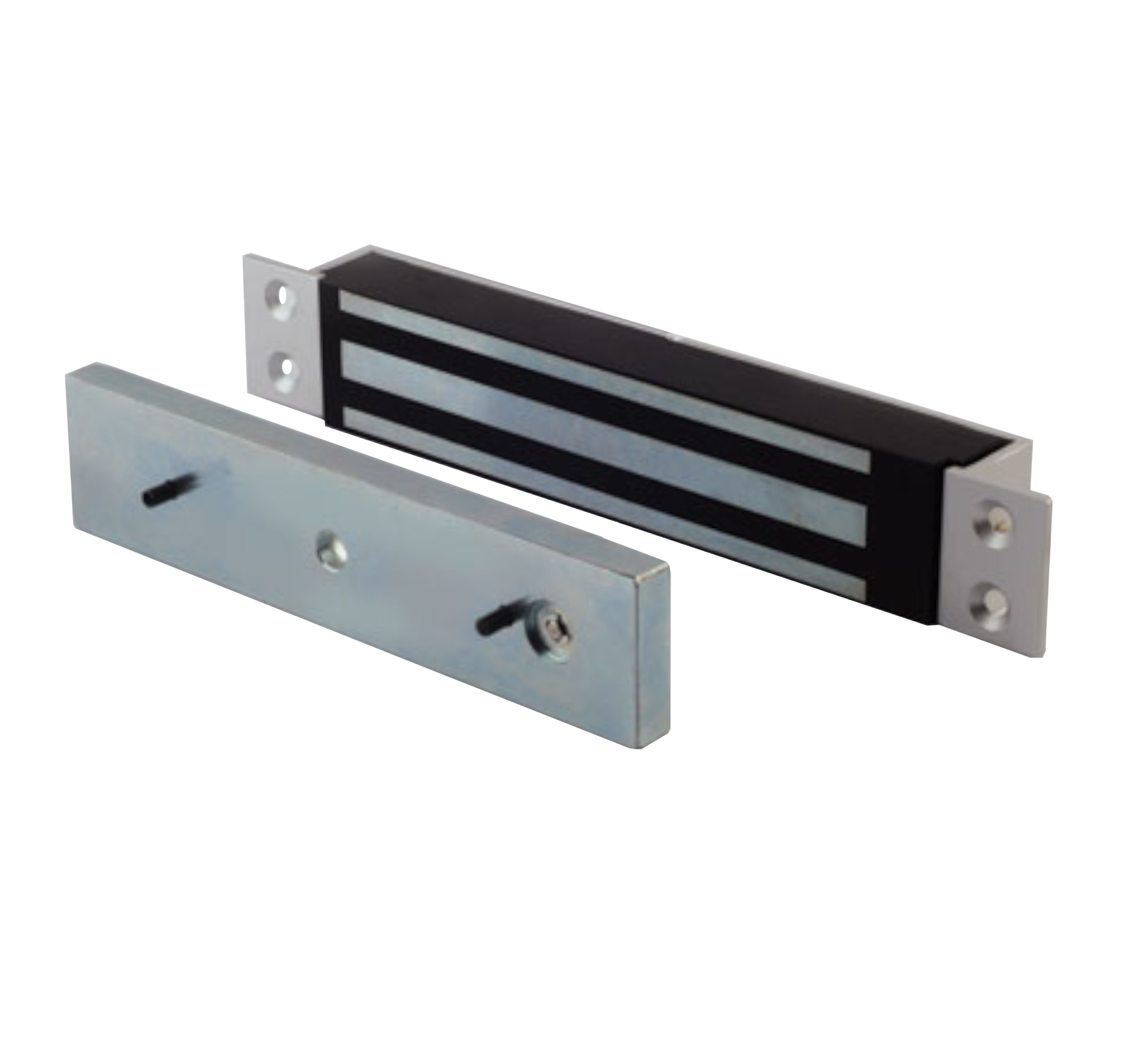

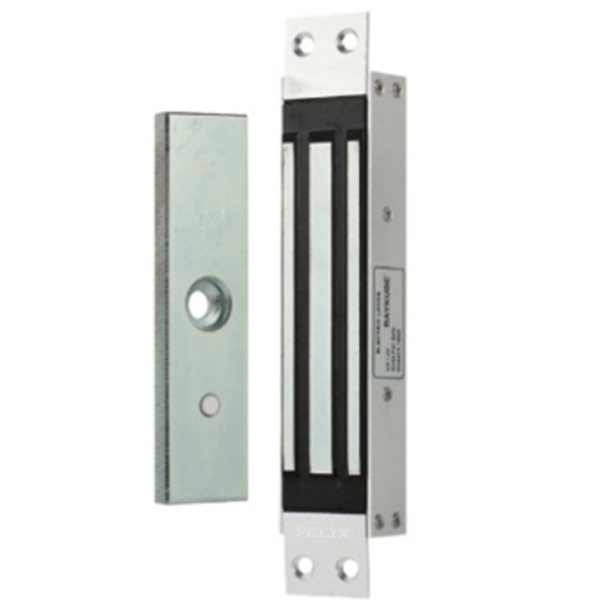

FC-280
Operating Voltage: 12VDC
This is a specialized mortise electromagnetic lock engineered for a flush mounting, 280 kg (600lbs) access control setup. Flush Architectural Profile: Slides entirely into a mortise pocket cut out of the door header. Eliminates the need for standard structural L or Z extension brackets

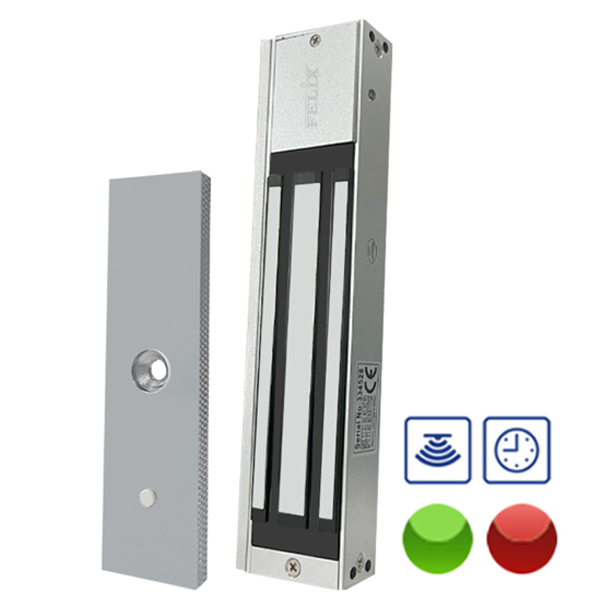

FM-350ST
Operating Voltage: 12VDC
This Lock delivers 800 lbs (350 kg) of holding force combined with an onboard adjustable timer delay, a bond/door status sensor, and a high-visibility Red/Green LED indicator
Dual Status Bond Sensor: Uses a 5-wire configuration to provide NO/NC/COM dry contact signal outputs.

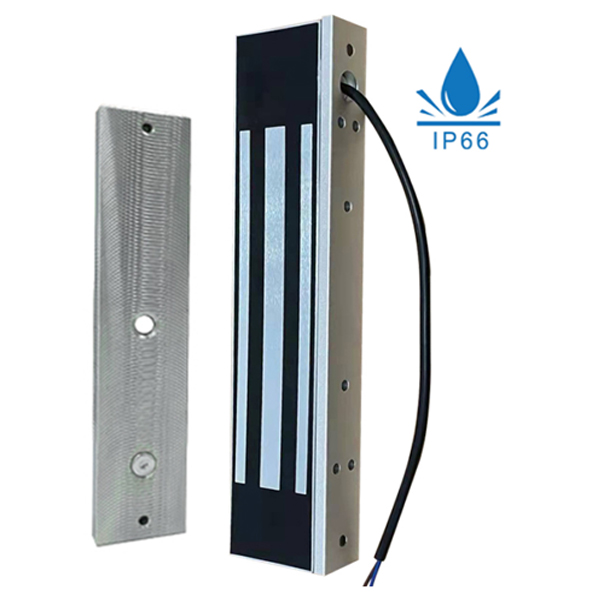

FM-280W
The lock is the specialized outdoor solution providing 280 kg (600 lbs). Unlike standard internal locks with exposed faceplates and hollow wire tracks, with fully sealed electronics to protect the lock from rain, dust, and humidity on gates and external entryways.
304 high-grade stainless-steel shell

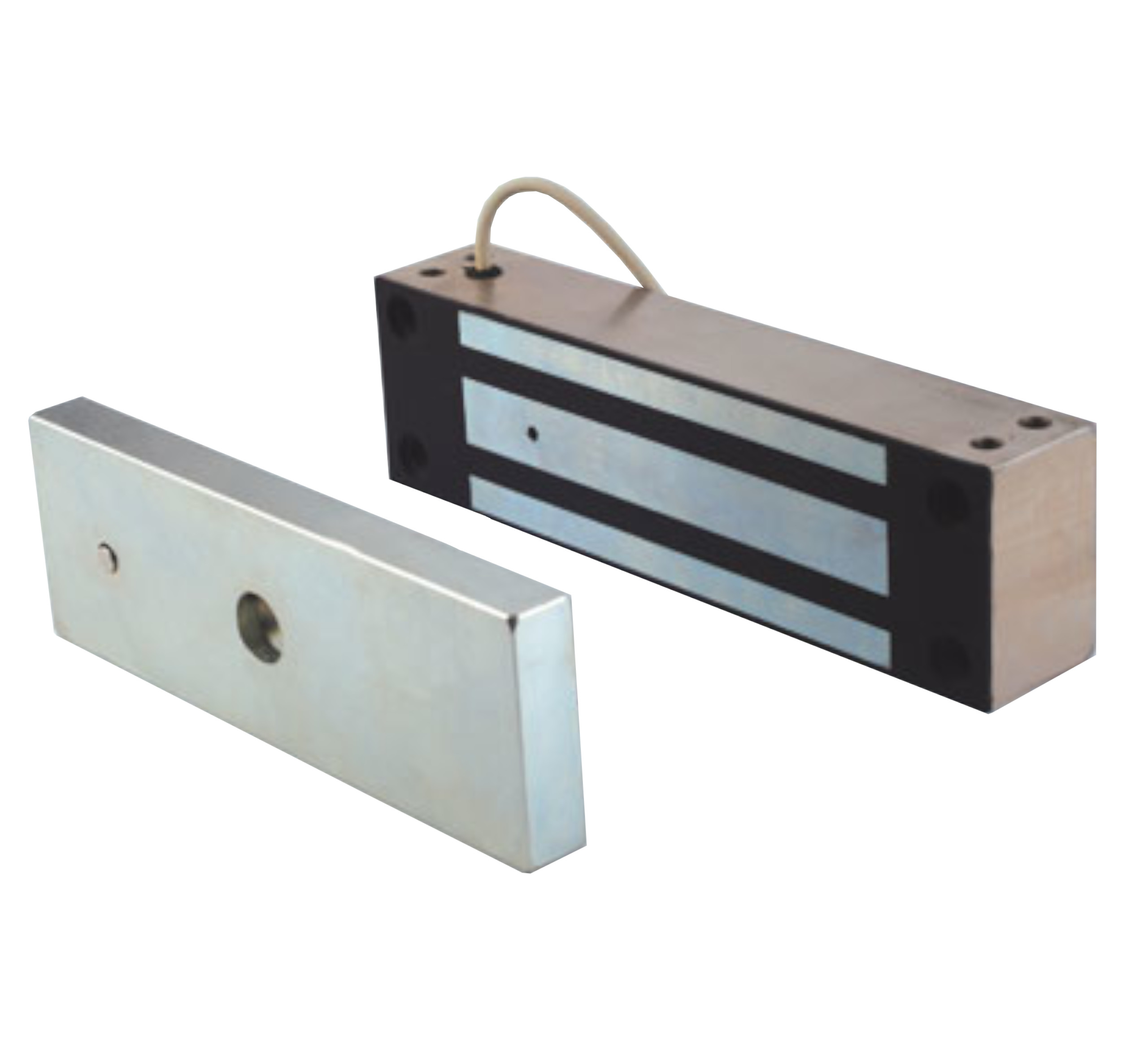

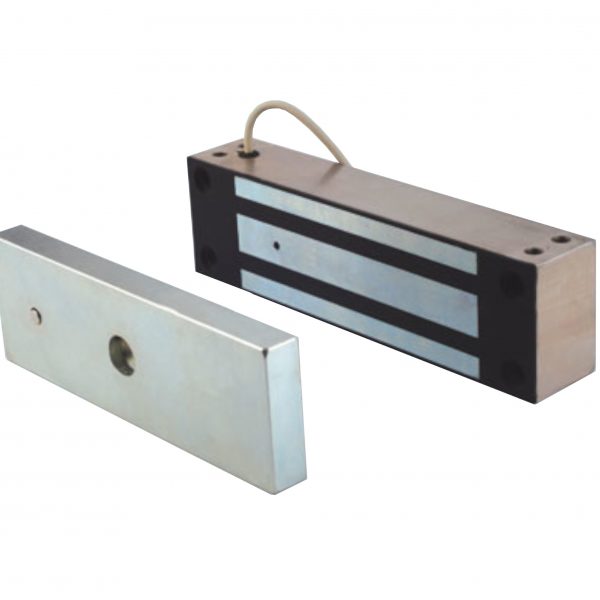

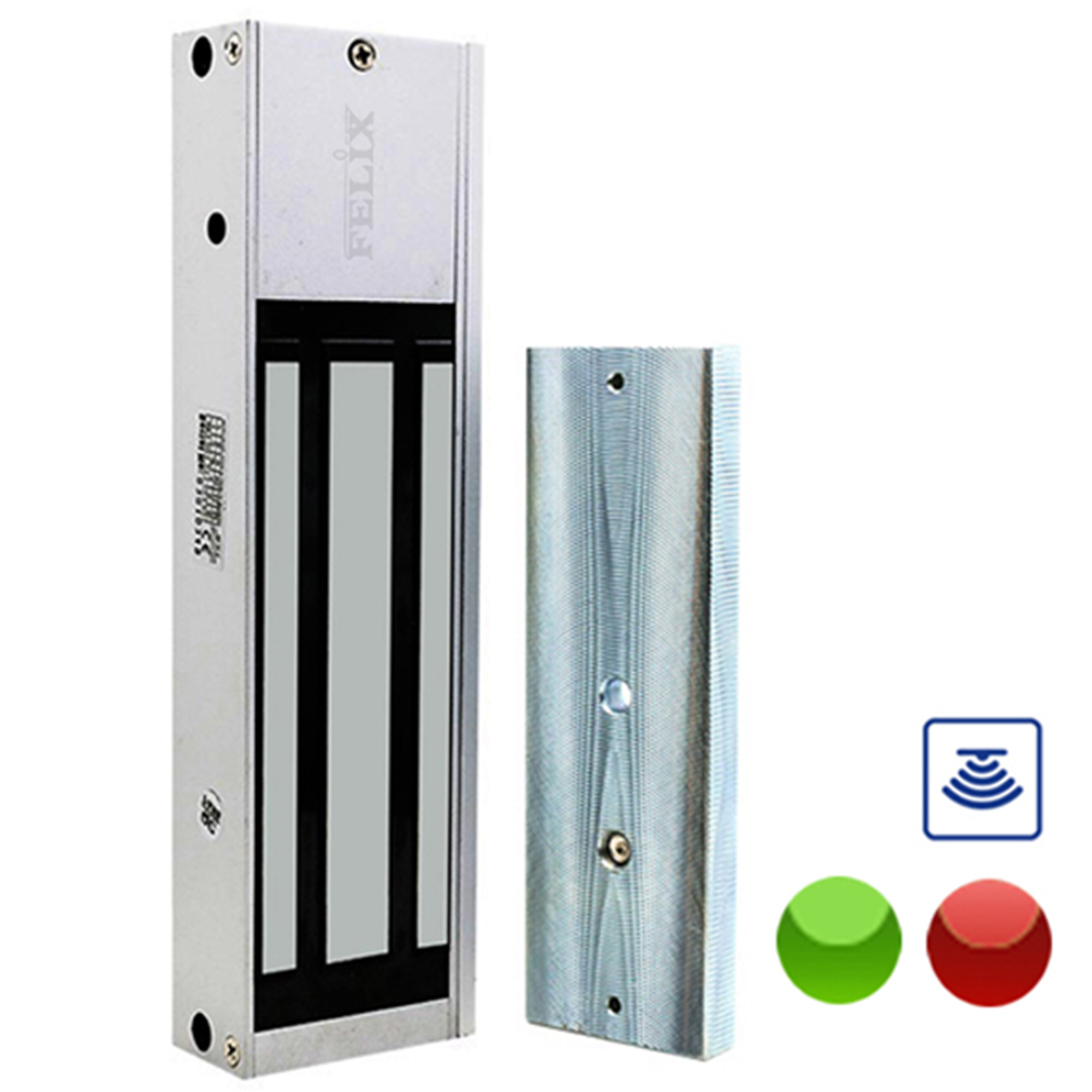

FM-500S
It operates with 12VDC and is heavy-duty, maximum-security model in the premium lineup, delivering a massive 500 kg (1200 lbs) of linear holding force. Engineered for high-risk entryways, main building perimeters, and armor-core doors
Dual Status Bond Sensor: Uses a 5-wire system to provide NO/NC/COM dry contact signal outputs.

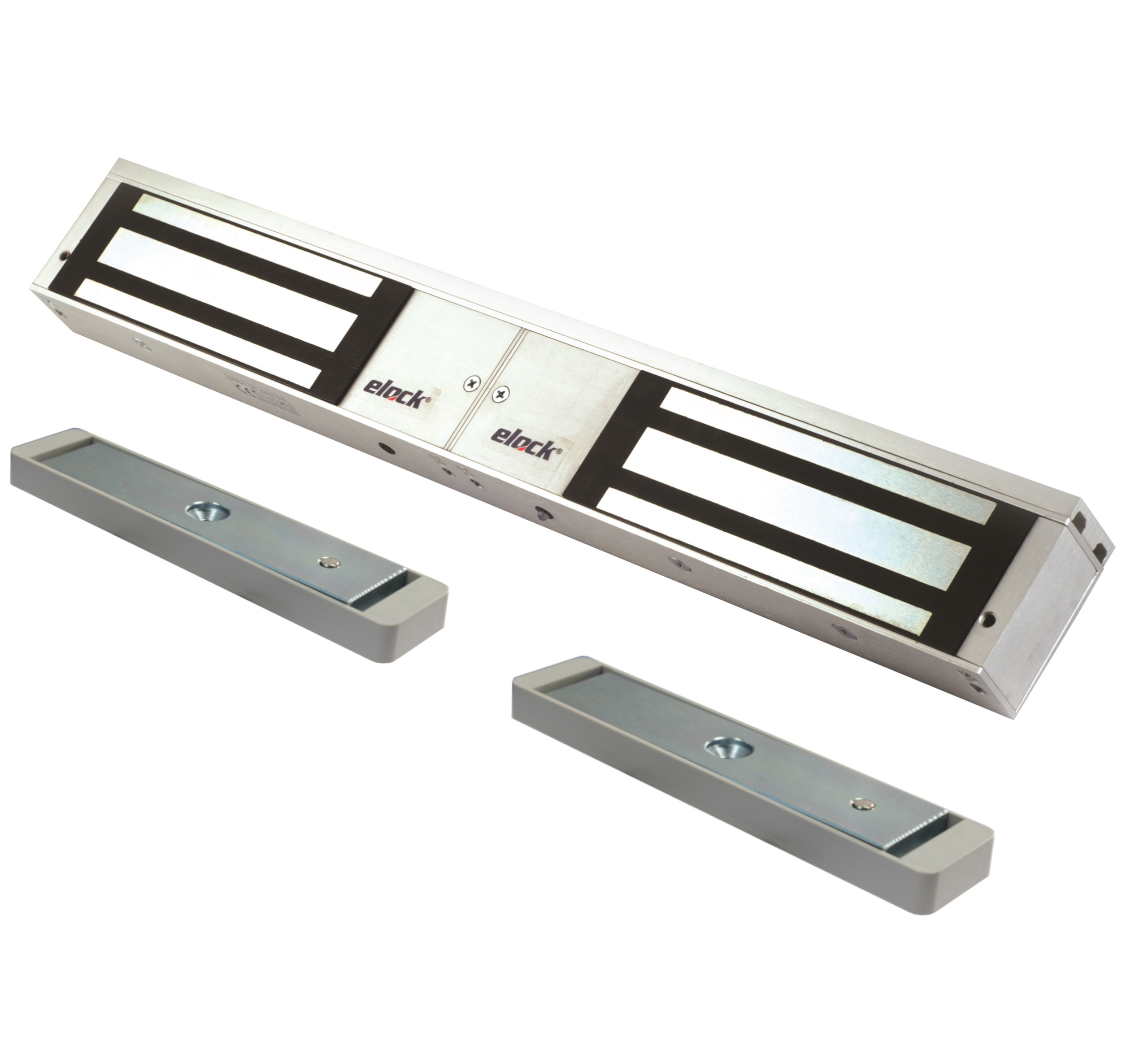

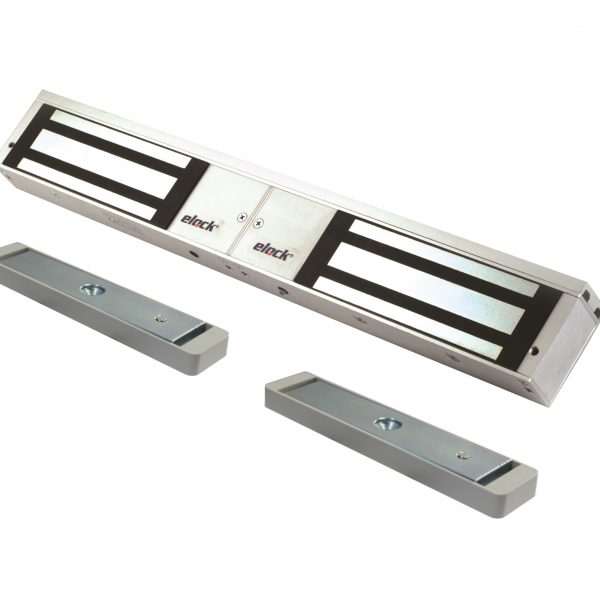

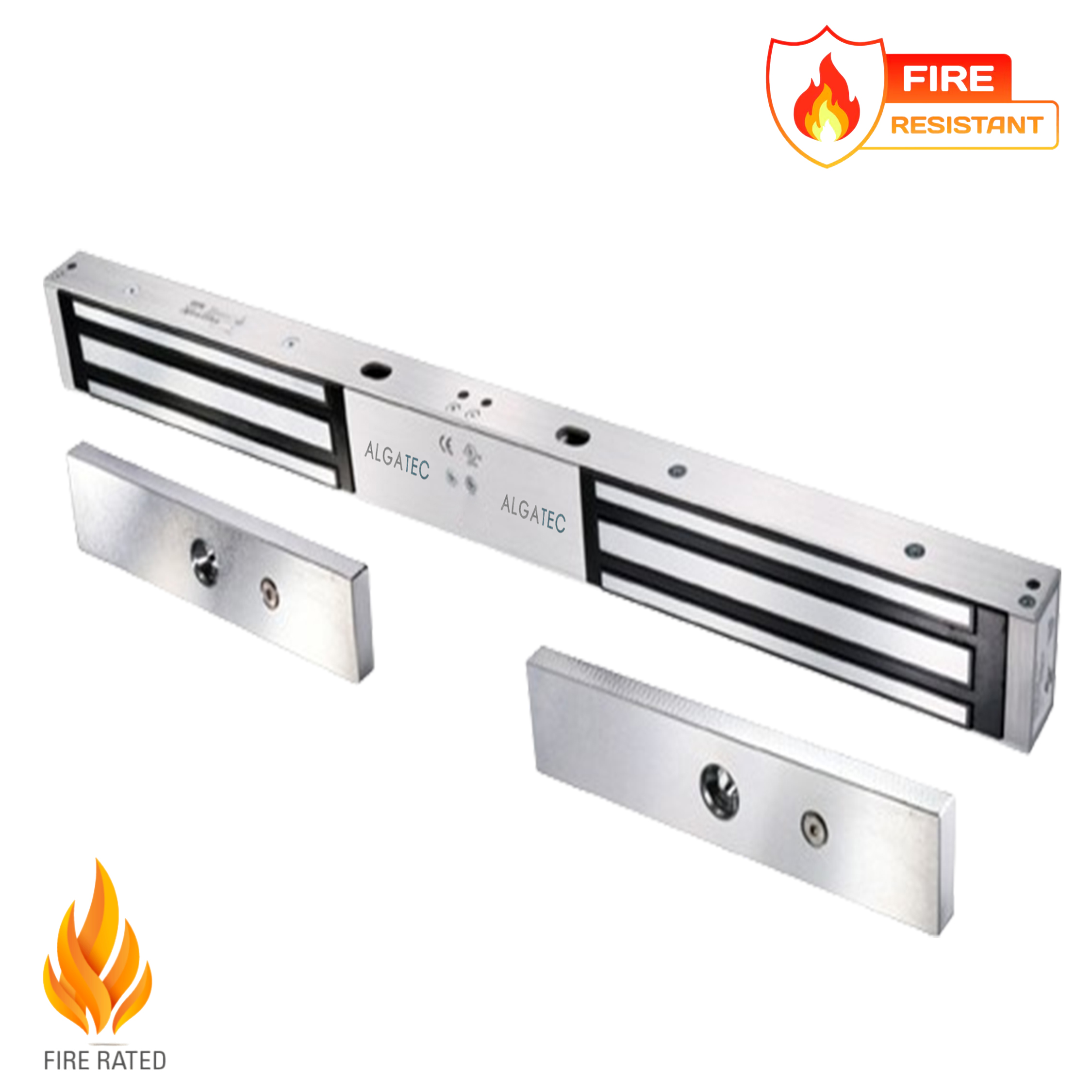

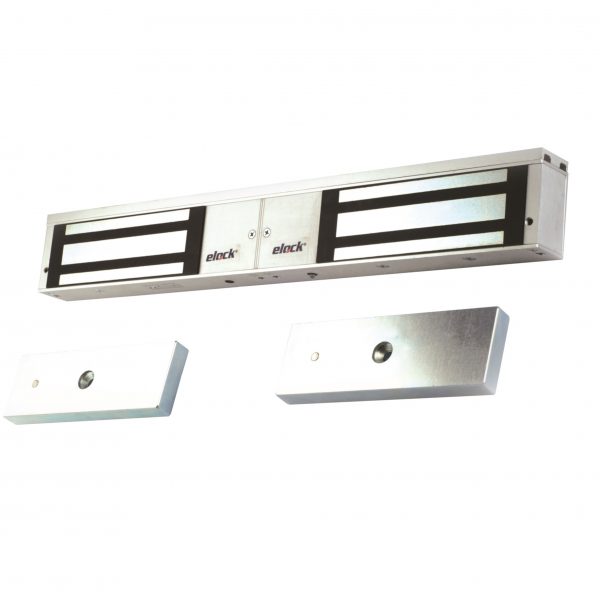

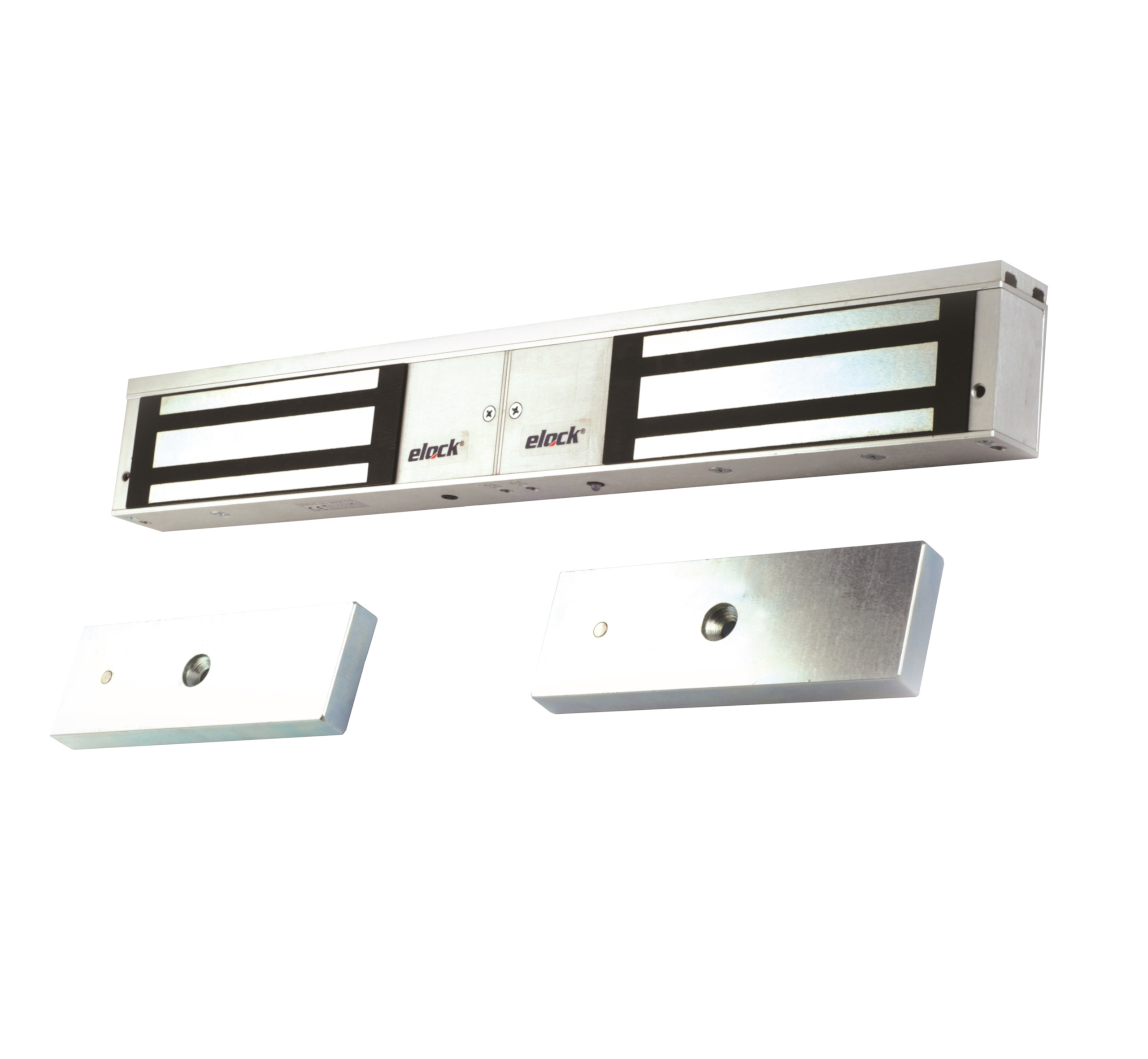

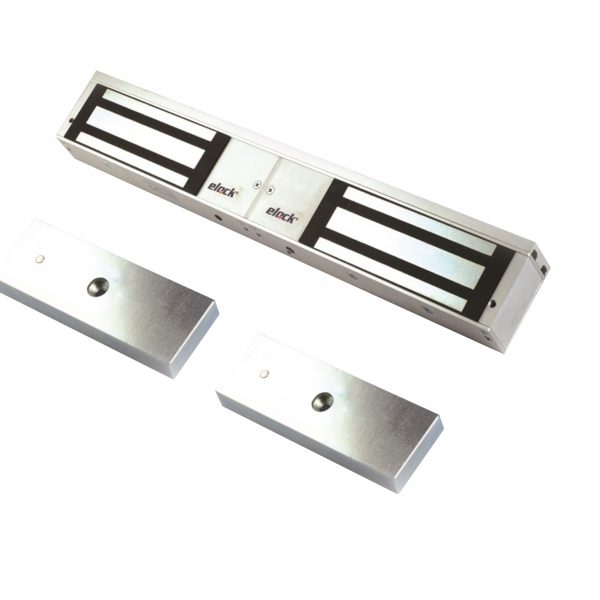

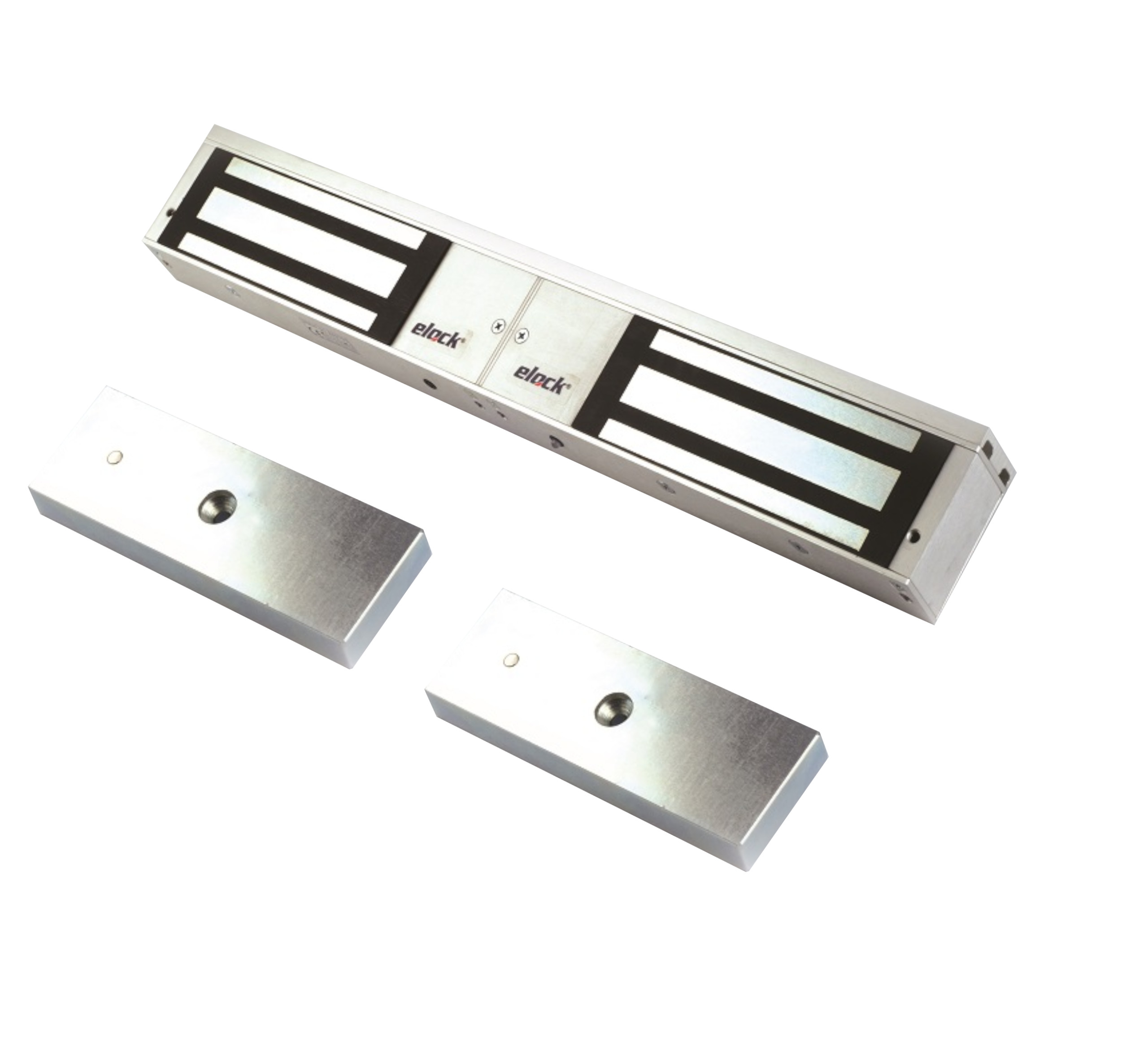

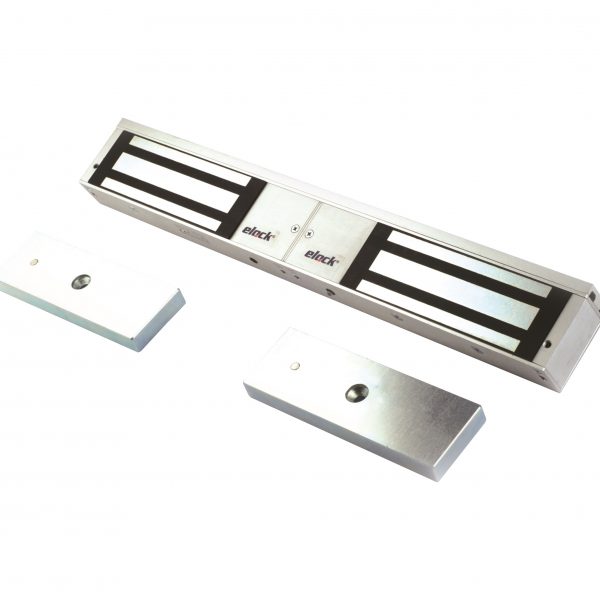

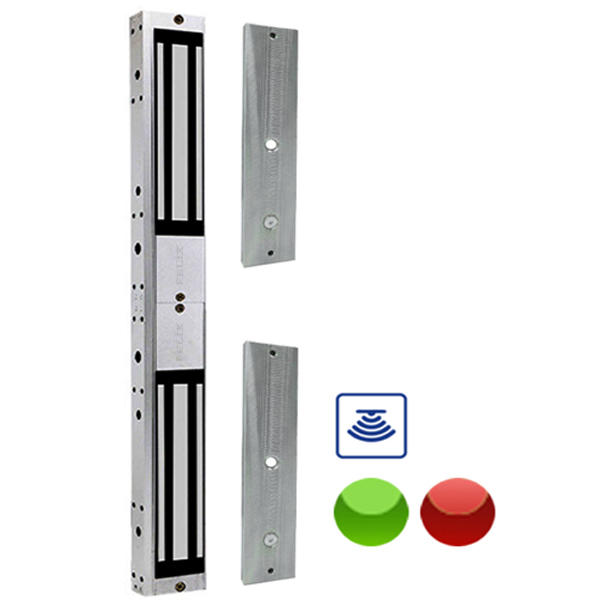

FM-280D-S
Input Current Draw: 12V DC (Requires 450mA x 2 per side)
This is a premium commercial hardware solution specifically engineered for double-leaf entryways. It houses two independent magnetic coils inside a single continuous 500mm housing, delivering a combined structural resistance of 560 kg (280 kg x 2 / 600 lbs x 2)
F-SL500
Operating Voltage: 12VDC /24VDC
F-SL500 Shear Lock represents the pinnacle of premium concealed locking technology, offering a massive 1,200 kg (2,600 lbs) holding force.
Intelligent Auto-Relock Logic: Built with an onboard microcontroller featuring a fixed 15-second time delay. independent Lock Status and Door Position (COM/NC/NO).

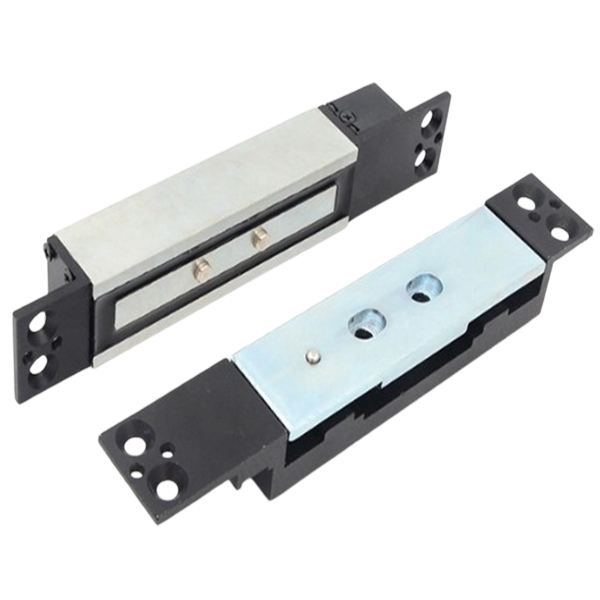

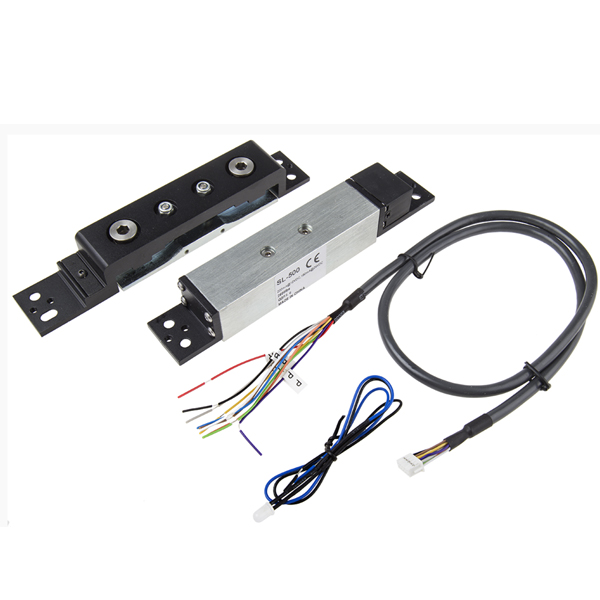

F-SL500W
Operating Input Voltage: 12VDC
Concealed Shear lock with a 1,200 kg (2,600 lbs) holding force. Unlike standard internal shear locks, the F-SL500W features a fully sealed, certified IP66 weather-resistant rating. This makes it perfectly suited for exposed outdoor gates, industrial perimeters, and humid environments.

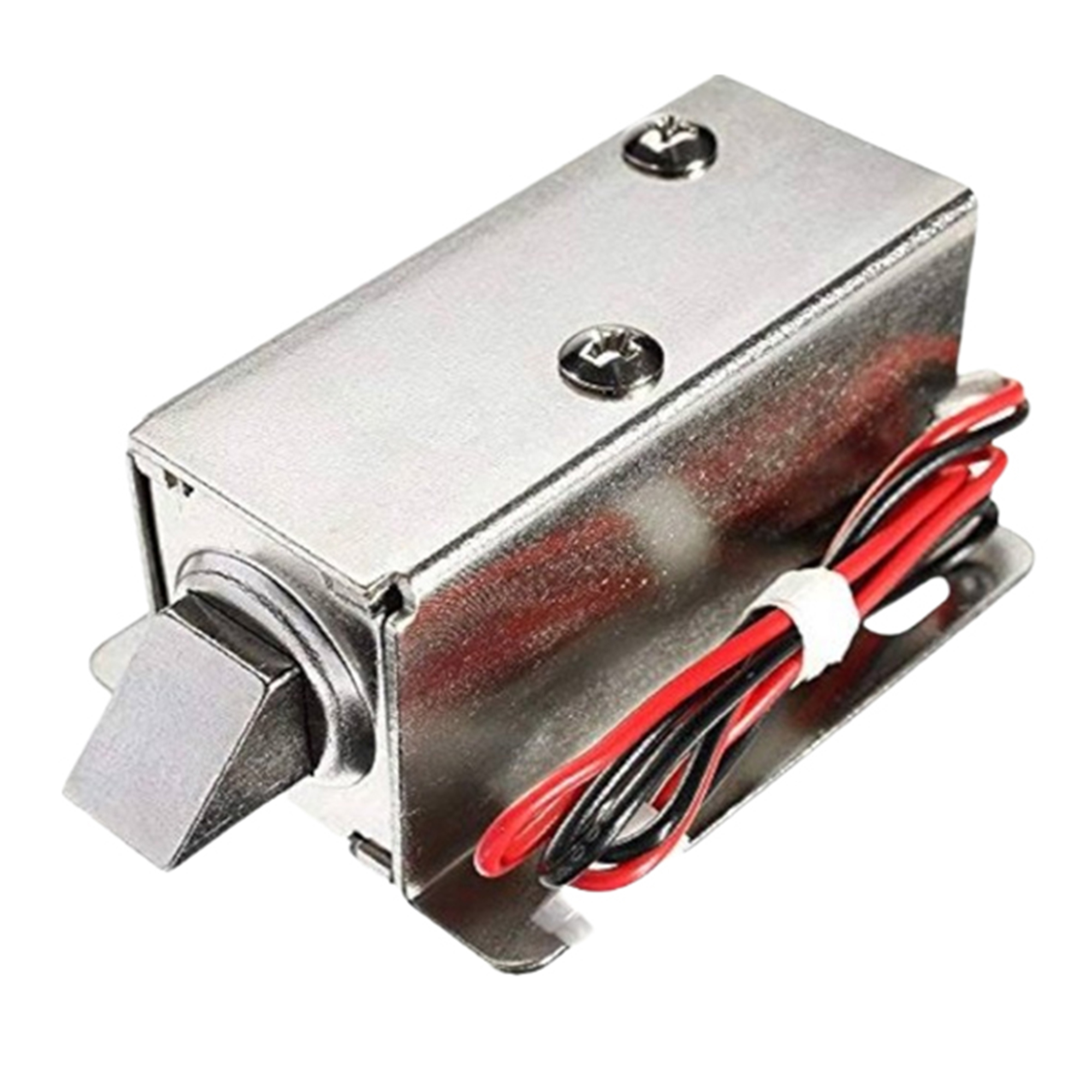

FE-302A
Miniature solenoid cabinet locks (often called electric locker latches) are ultra-compact electronic devices designed to fit inside small enclosures like drawers, medicine cabinets, mailboxes, and smart delivery lockers
Designed for a quick Fail-Secure pulse operation (12V 2A), drawing power only for a fraction of a second to release the door hook.
FE-210A
Operates purely via standalone 13.56MHz RFID cards or key fobs, making it completely independent of smartphones or internet connectivity.
Features a built-in low-power auto-unlock mechanism. When the AA batteries fall too low to reliably actuate, the latch automatically retracts open so you are never permanently locked out.

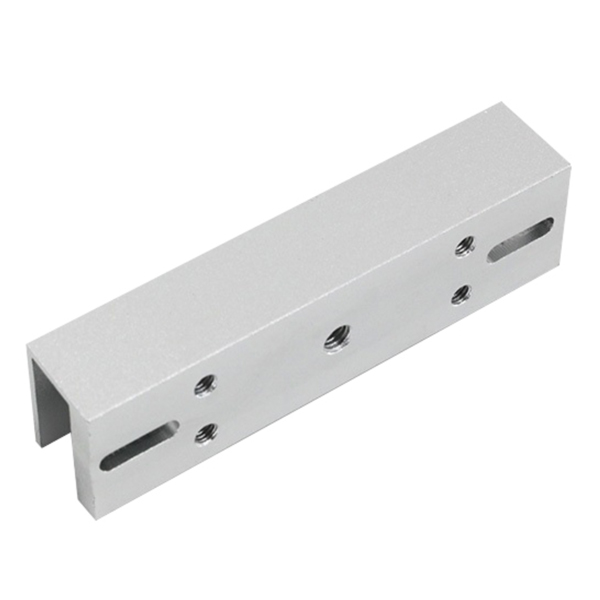

FU-180

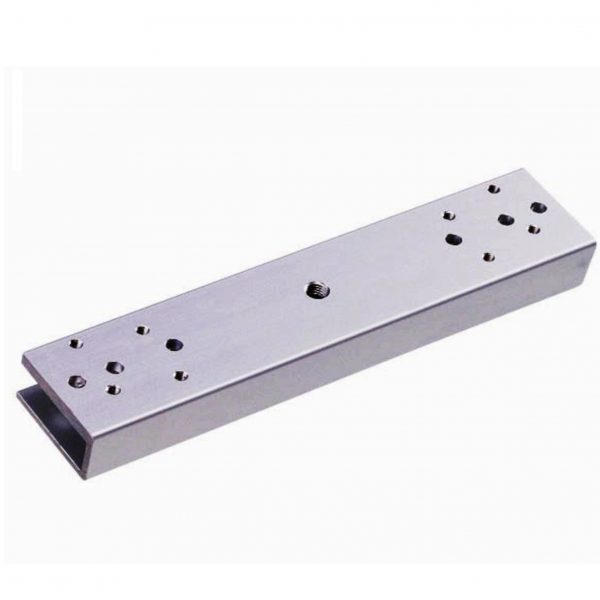

The FU-180 is U Bracket for a 180kg (350lbs) EM lock is a hardware accessory designed specifically to mount the flat armature plate onto a frameless glass door.
The U-bracket clamps secure the Armature Plate over the top edge of the glass pane without requiring any drilling into the glass itself.
Requires a 5–6 mm clearance gap between the door and the frame.

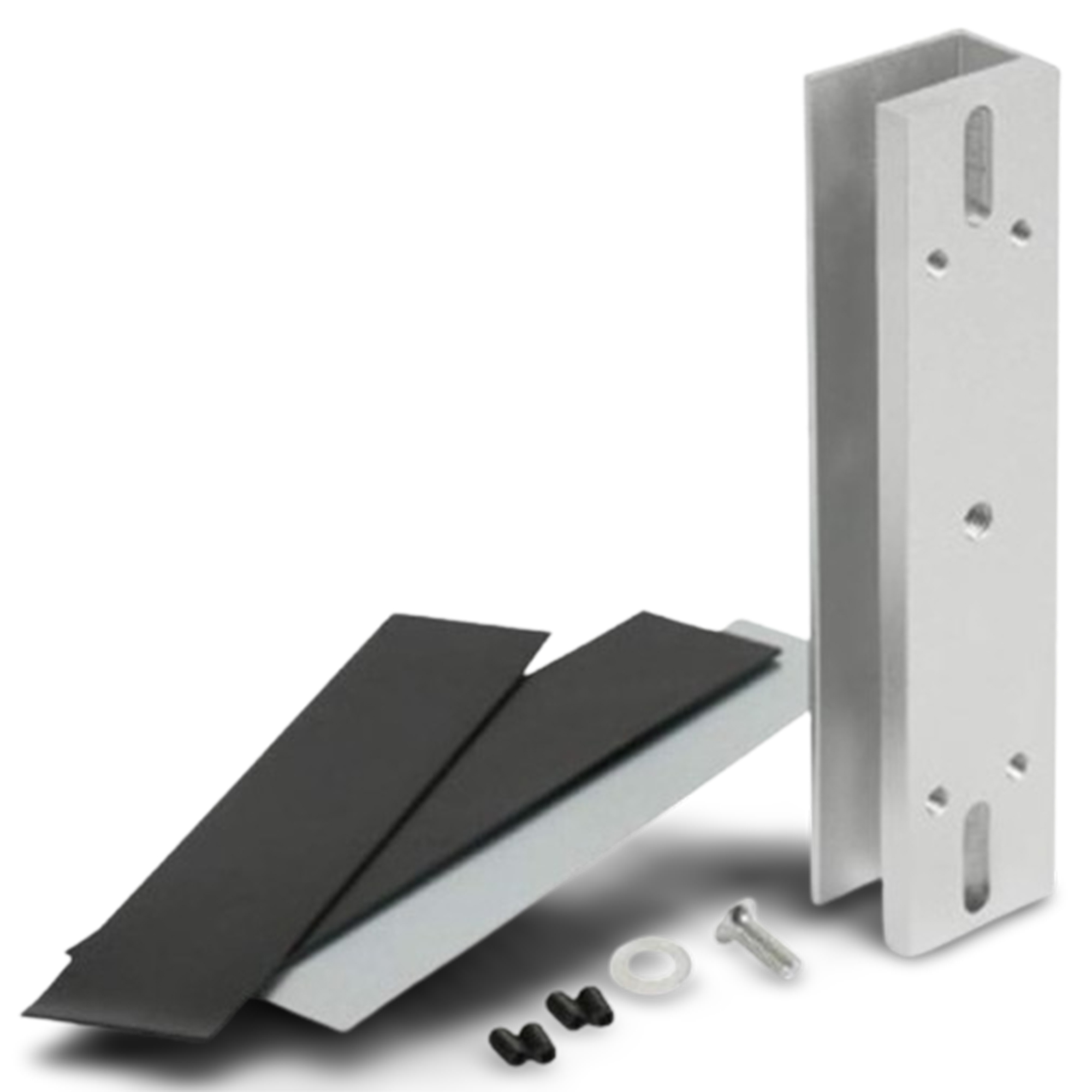

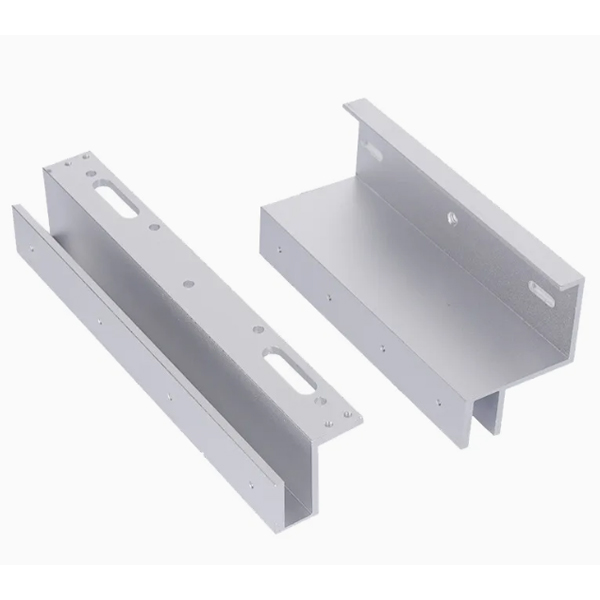

FU-280
The FU-280 is U Bracket for a 280kg (600lbs) EM lock is a hardware accessory designed specifically to mount the flat armature plate onto a frameless glass door.
The U-bracket clamps secure the Armature Plate over the top edge of the glass pane without requiring any drilling into the glass itself.
Requires a 5–6 mm clearance gap between the door and the frame.

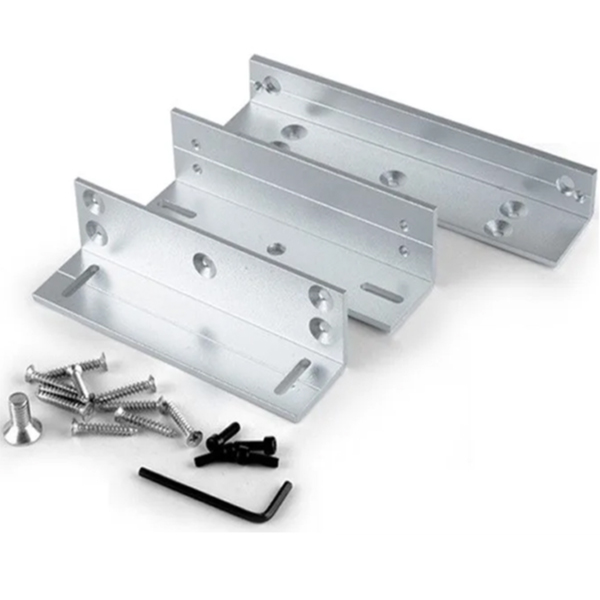

FZL-180
ZL Bracket for a 180kg (350lbs) magnetic lock is a specialized mounting accessory used to install electromagnetic locks onto inward-opening (inswinging) doors
Material: High-strength anodized aluminum with a sandblasted aesthetic.

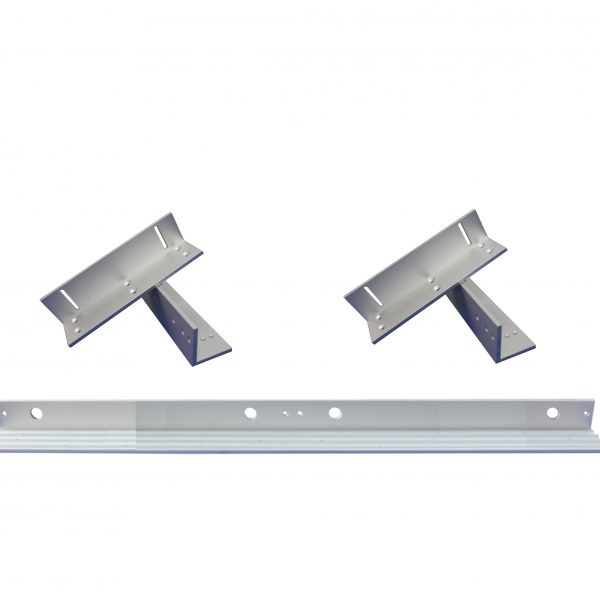

It consists of an “L” bracket to mount the main magnet to the upper door frame and an adjustable “Z” bracket to mount the armature plate to the door itself.

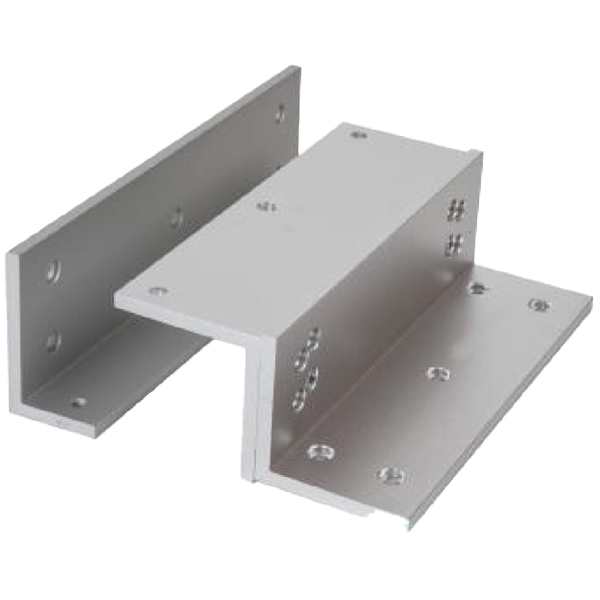

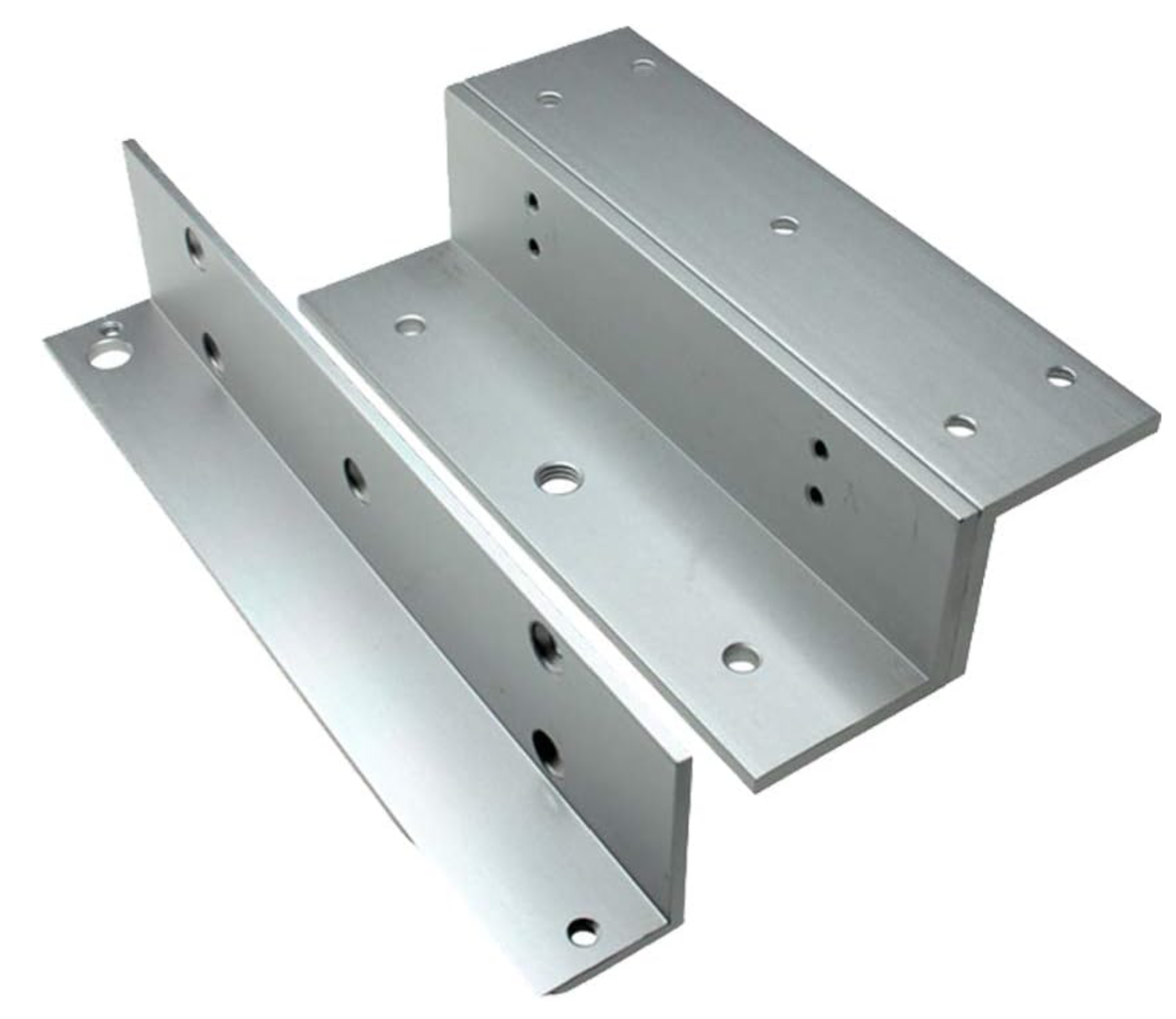

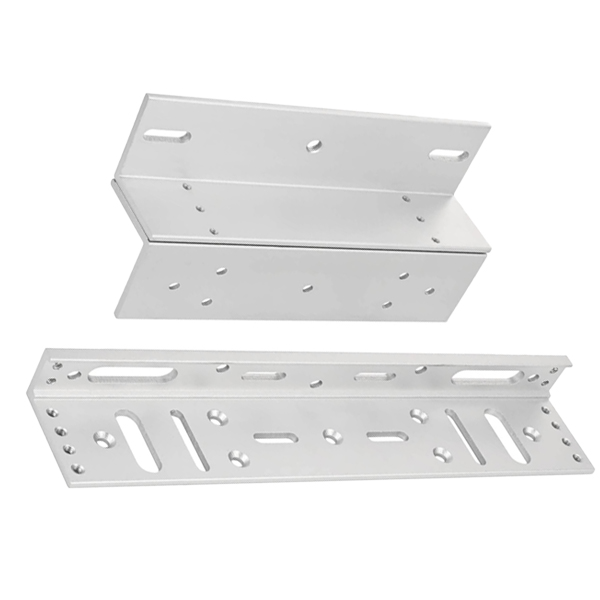

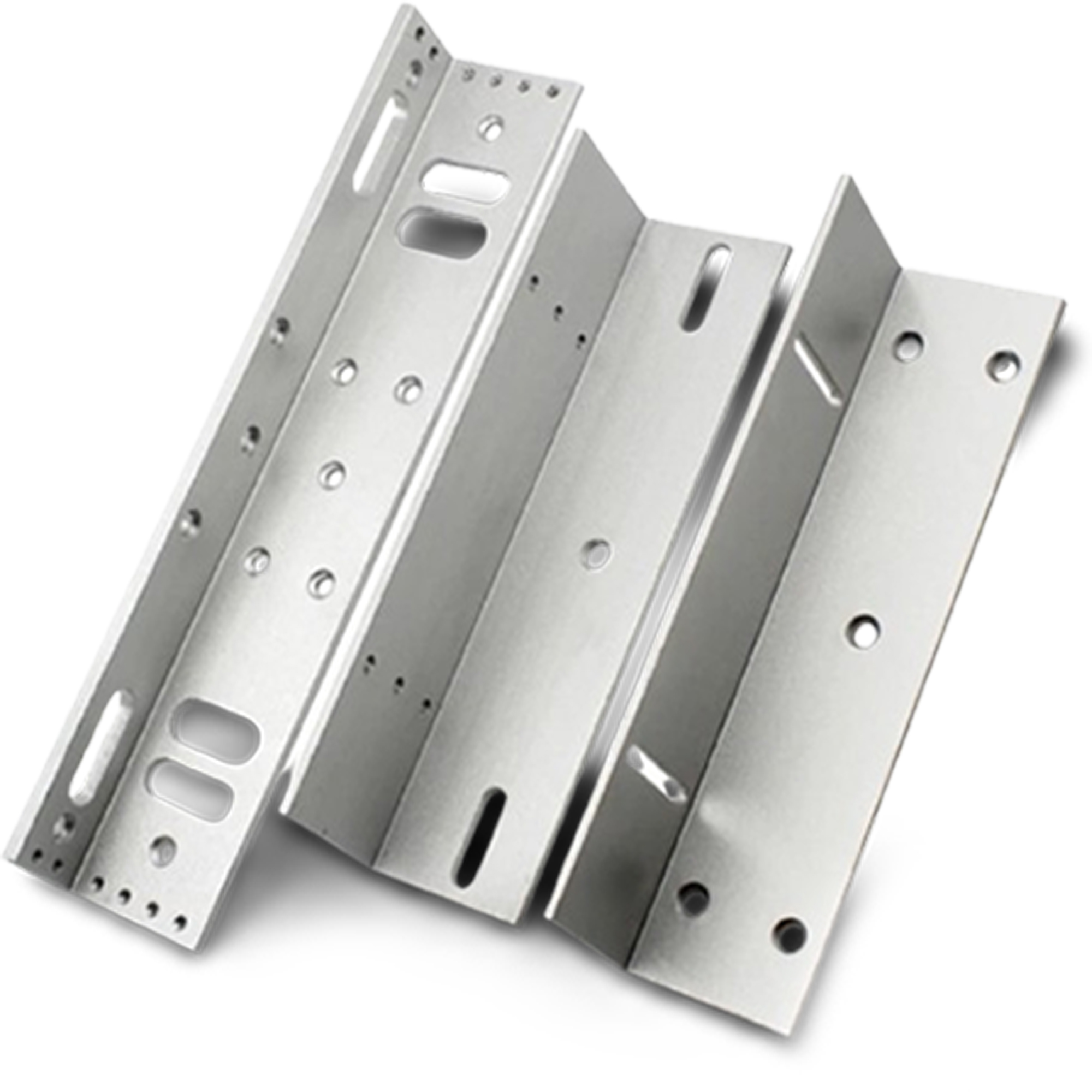

FZL-280
ZL Bracket for a 280kg (600lbs) magnetic lock is a specialized mounting accessory used to install electromagnetic locks onto inward-opening (inswinging) doors
Material: High-strength anodized aluminum with a sandblasted aesthetic.
It consists of an “L” bracket to mount the main magnet to the upper door frame and an adjustable “Z” bracket to mount the armature plate to the door itself.
Accessories

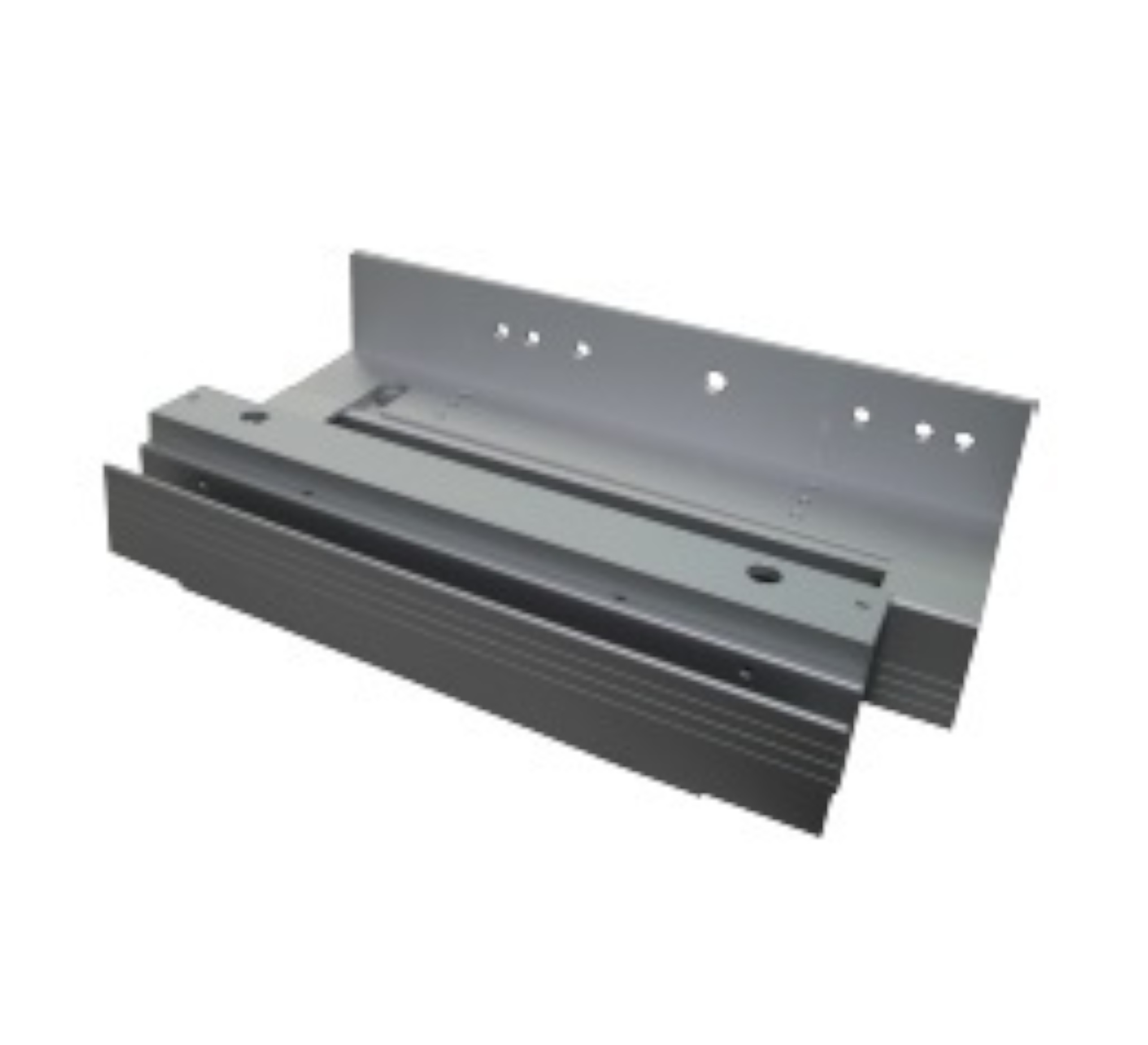

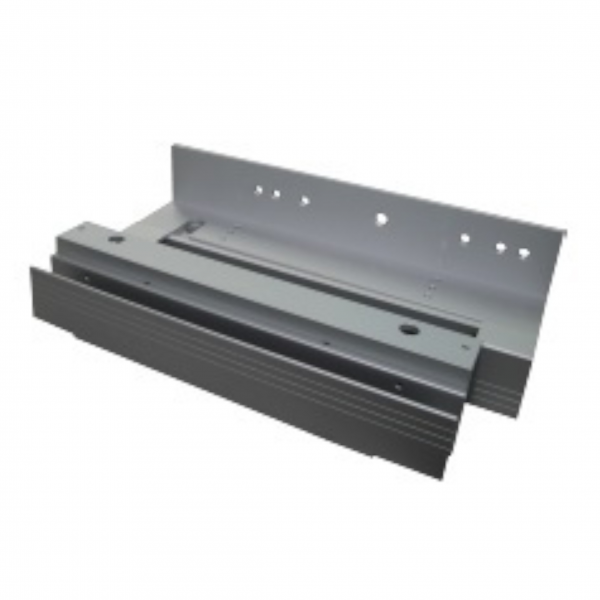

EL-BKG (G Bracket)
G Bracket adjustable for Elock- 600 Series
Suitable for use with frameless glass doors and the glass wall
Adjustable for inward door application

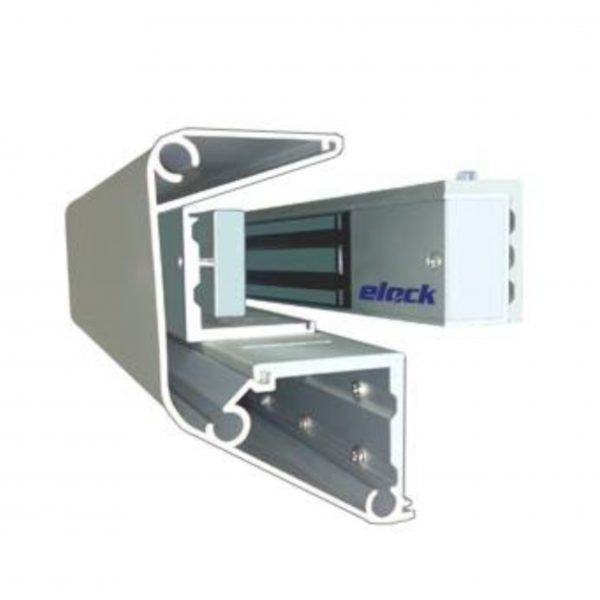

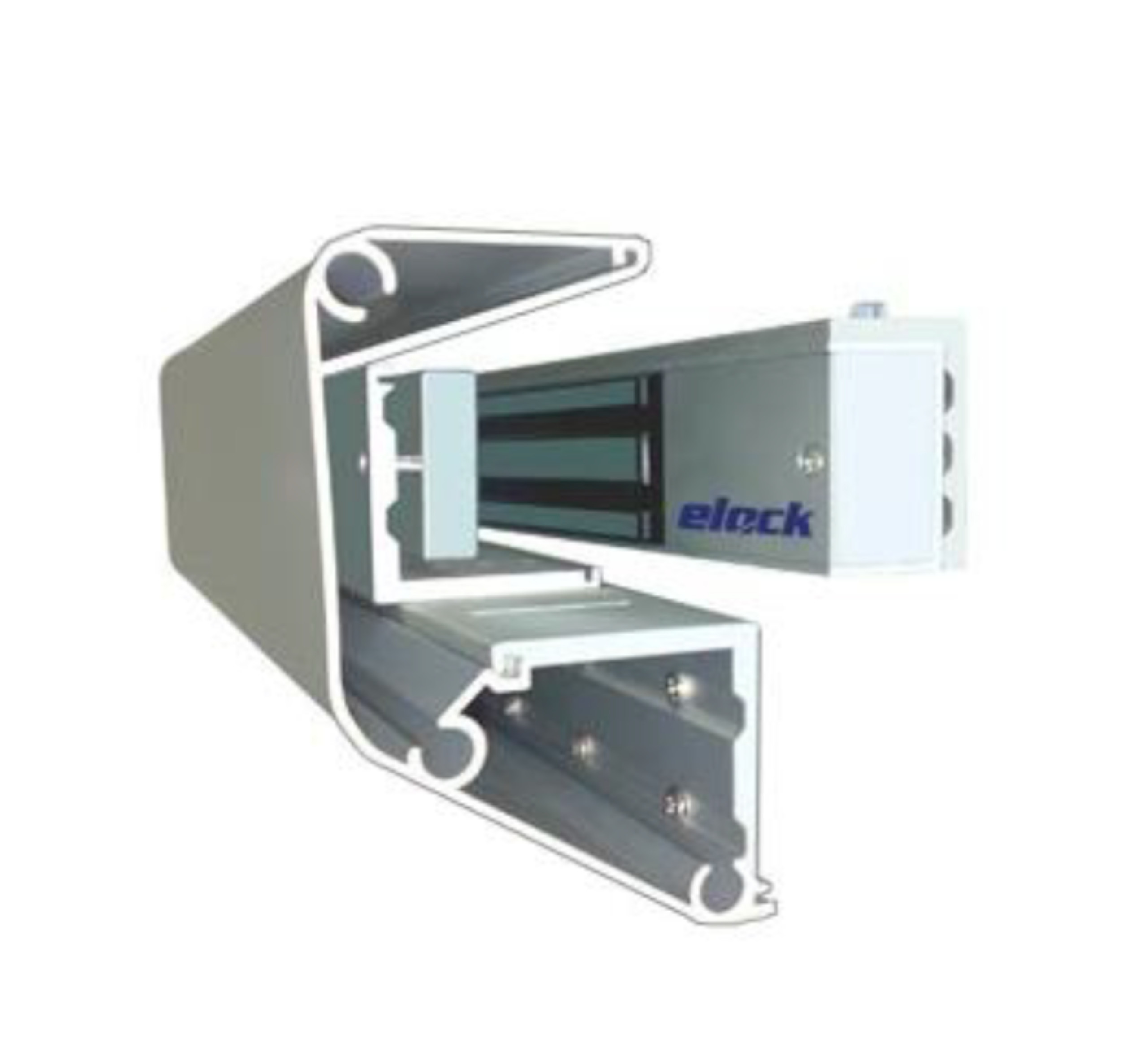

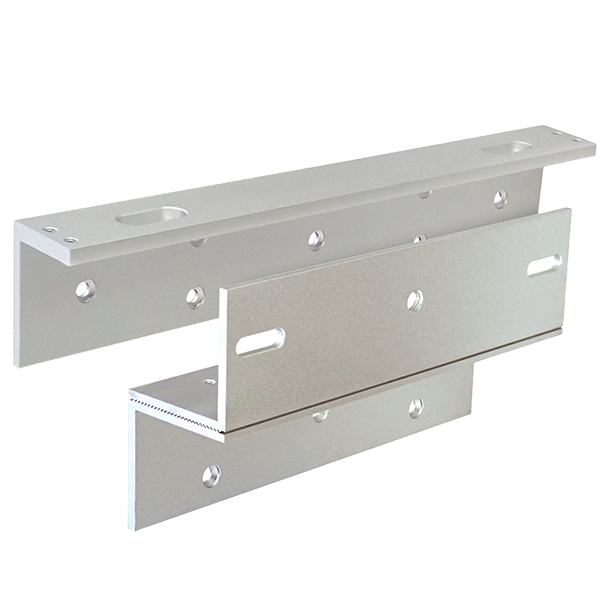

EL-BK-Z600C
ZL Bracket cover for Elock-600 series
Adjustable “ ZL” bracket with cover for Inward door application

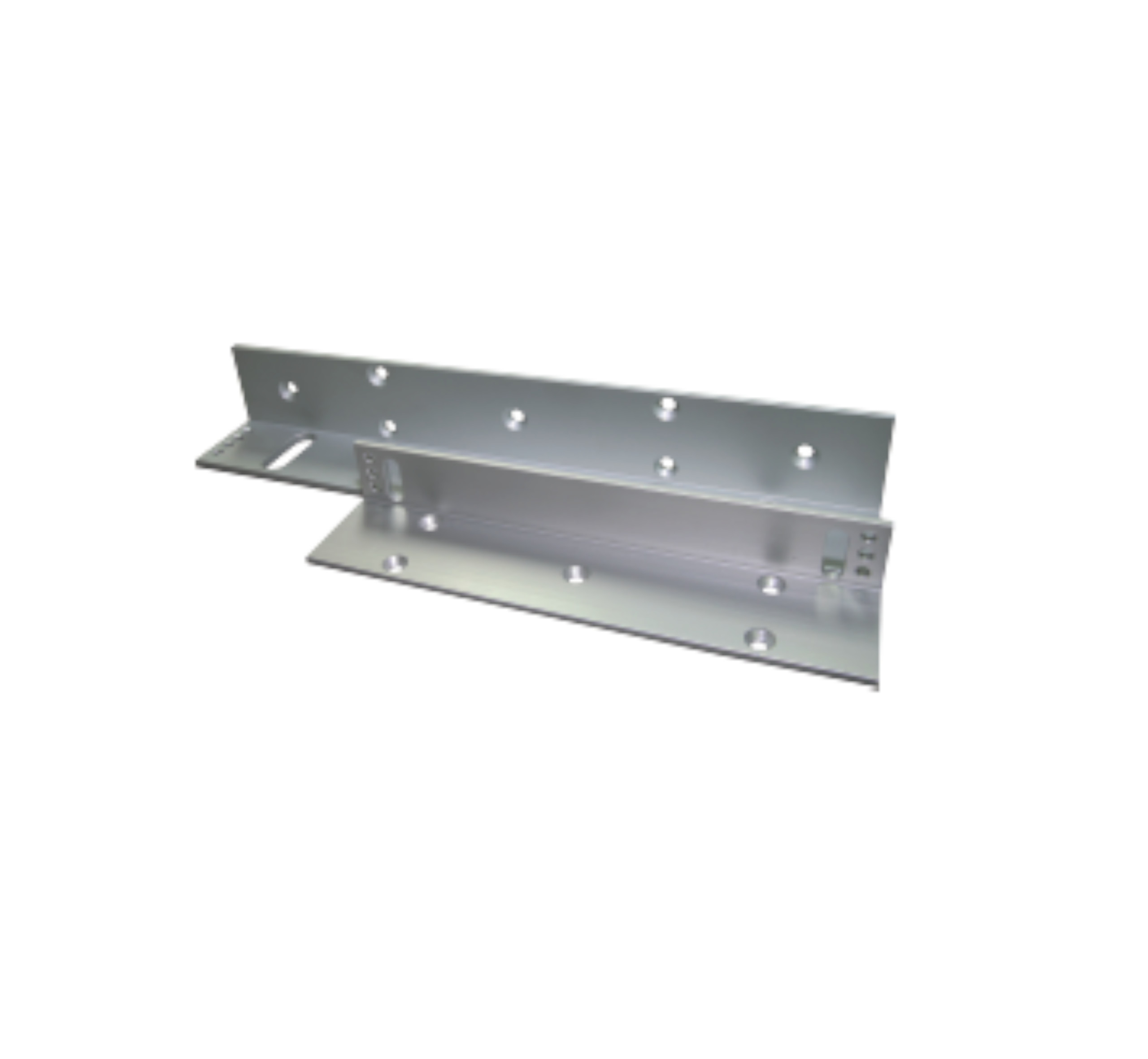

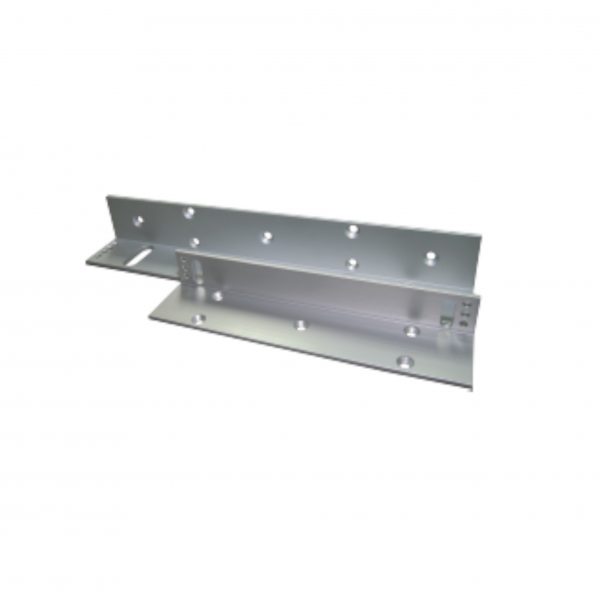

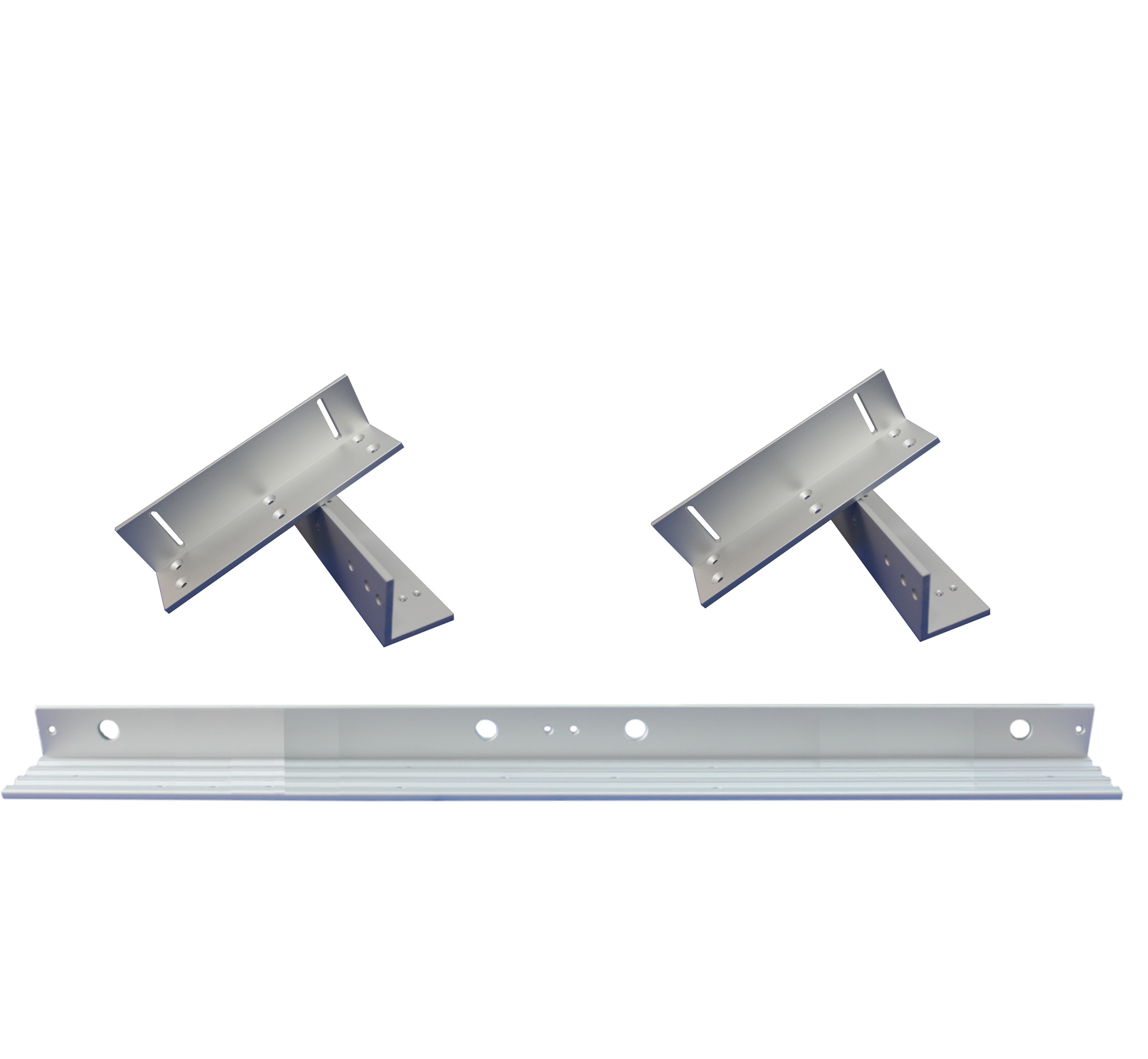

EL-BKL (L Bracket)
L Bracket adjustable for Elock-300, 600, 800S, 1200 and 1500 Series
Adjustable L Bracket for outward door when the header is narrow.
